Replacing Control Arm

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control arm -1-  from bracket -2-  .

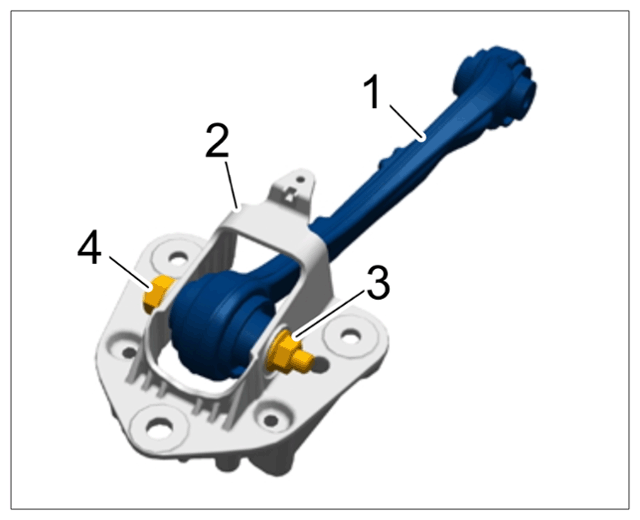

    G15527319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for control arm on bracket

    1. 1.1  Unscrew nut -3-  and counter at screw -4-  .
  2. Fit new control arm -1-  on bracket -2-  .
    G15527320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for control arm on bracket

    1. 2.1  Insert screw -4-  and tighten nut -3-  . > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
