Technical Values

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Final tightening	+ 180°
Control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Final tightening	+ 180°
Bracket to body	Hexagon-head bolts, M10 x 50	Tightening torque	55 Nm (40.6 ftlb.)
Bracket to body	Hexagon nut, M10	Tightening torque	65 Nm (47.9 ftlb.)
Bracket to body	Stud, M10 x 68.5	Tightening torque	25 Nm (18.4 ftlb.)
Holder for distributor/pressure lines to control arm bracket (left side of vehicle)	Hexagon roundhead bolt, M6 x 16 (item 1)	Tightening torque	10 Nm (7.5 ftlb.)

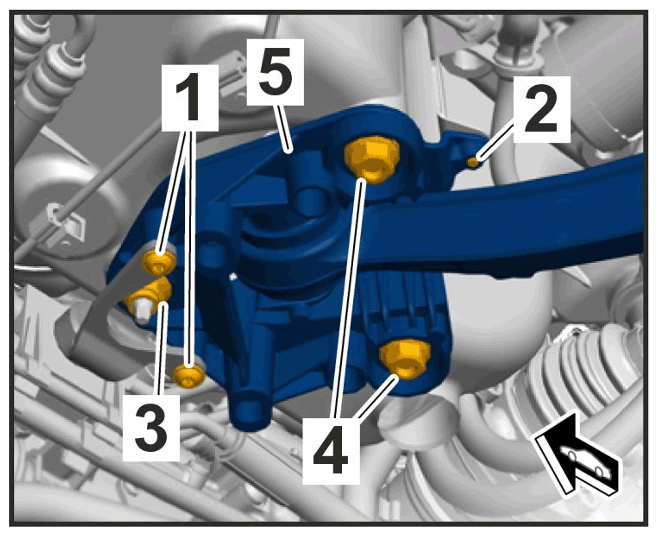

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing bracket
Brake line holder to control arm bracket	Hexagon-head bolt, M6 x 16	Tightening torque	10 Nm (7.5 ftlb.)

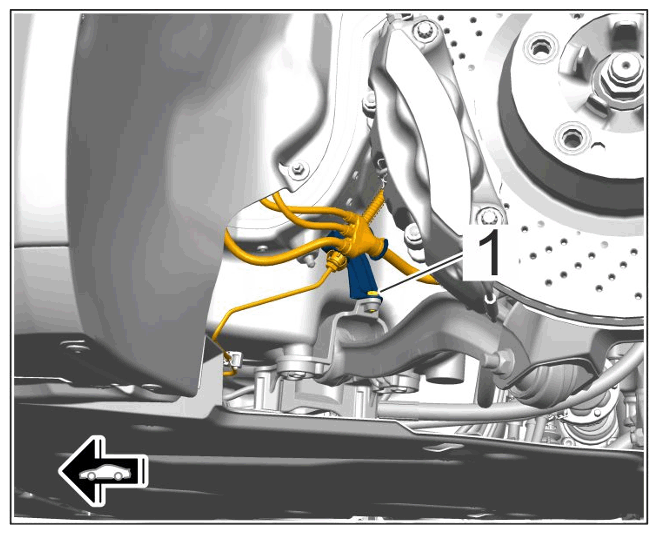

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake line holder
