Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Rear upper control arm to wheel bearing housing (GT3) | Hex bolt M12 x 1.5 x 80/always replace after removal | Initial tightening | 90 Nm (66.4 ftlb.) | ||
| Rear upper control arm to wheel bearing housing (GT3) | Hex bolt M12 x 1.5 x 80/always replace after removal | End tightening rotation angle | + 90° | ||
| Rear upper control arm to rear-axle carrier side section (GT3) | Hex bolt M12 x 1.5 x 95/always replace after removal | Initial tightening | 90 Nm (66.4 ftlb.) | ||
| Rear upper control arm to rear-axle carrier side section (GT3) | Hex bolt M12 x 1.5 x 95/always replace after removal | End tightening rotation angle | + 90° | ||
| Fastening nut securing rear angle sensor for headlight beam adjustment to wishbone | Item 2 | Tightening torque | 8 Nm (6 ftlb.) | ||
|

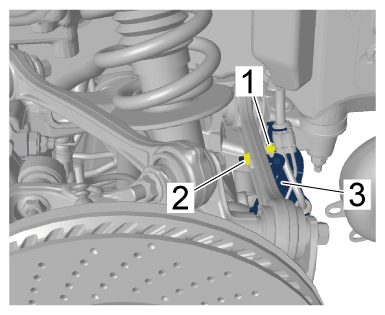

Rear angle sensor for headlight beam adjustment |
