Removing Upper Control Arm (Rear)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach angle sensor for headlight beam adjustment -1-  from the upper control arm (rear).

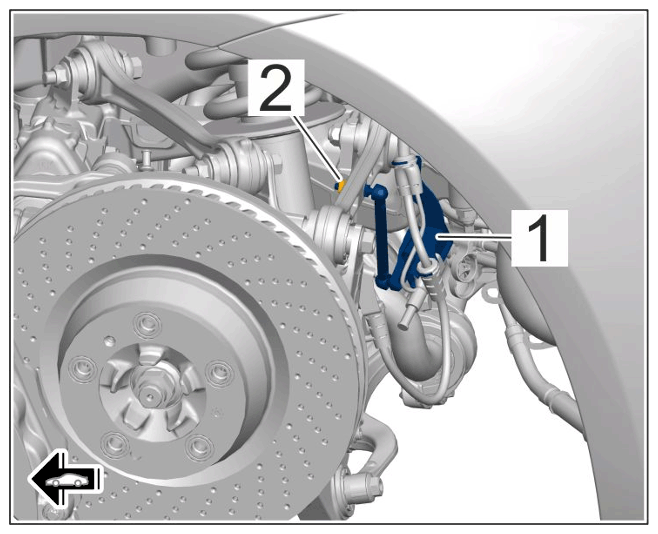

    G15527298Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Angle sensor for headlight beam adjustment to upper control arm (rear)

    1. 1.1  Unscrew nut -2-  and counter at the joint bolt.
  2. Remove upper control arm (rear) -1-  .

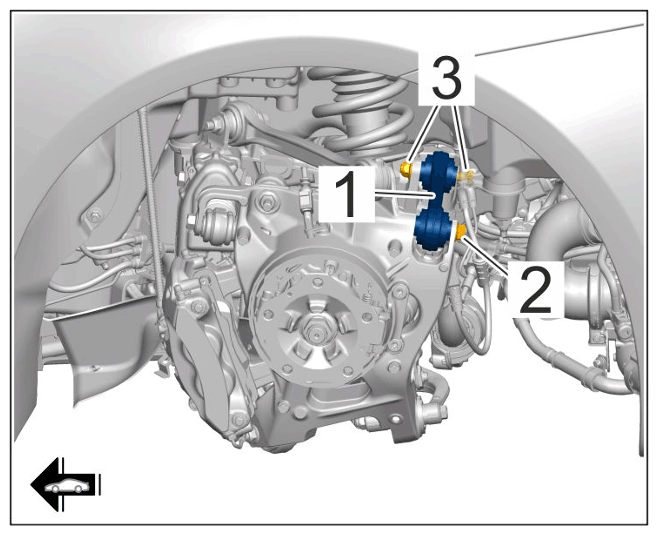

    G15527299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper control arm (rear)

    1. 2.1  Unscrew screw -2-  on the wheel bearing housing.
    2. 2.2  Remove screw -3-  for rear-axle carrier side section, counter nut -3-  when doing so.
    3. 2.3  Remove upper control arm (rear) -1-  .
