Installing Upper Control Arm (Rear)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

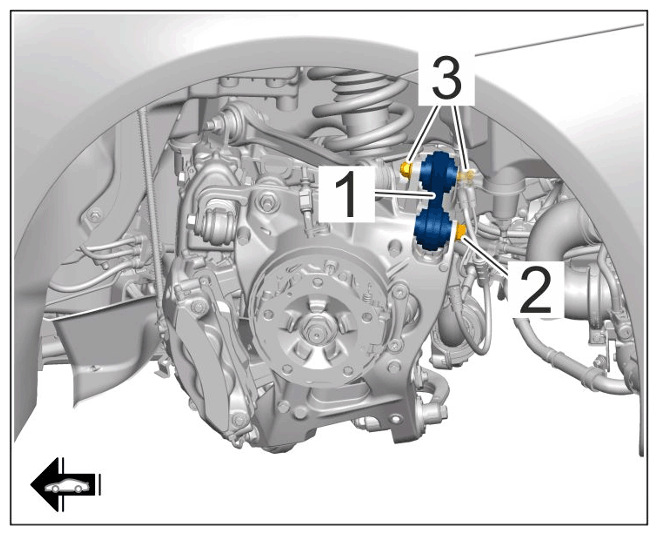

Upper control arm (rear)

1. 1.1  Position upper control arm (rear) -1-  .
2. 1.2  Screw in new  screw -2-  , but do not tighten yet.
3. 1.3  Screw in new  screw -3-  and screw on new  nut, but do not tighten yet.
   WARNING: Wheel bearing housing raised incorrectly

   • Risk of cushing
   • Risk of damage to components

     → Wear personal protective gear.

     → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

   Information

   Threaded joints must only be tightened in zero position to prevent warping in the bearings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

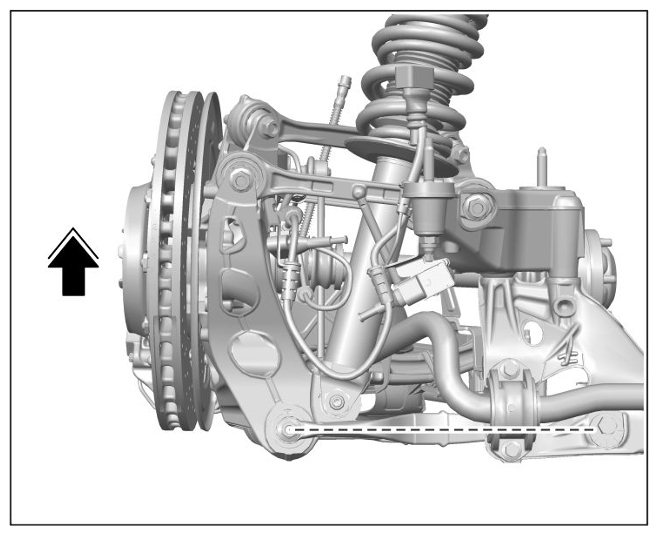

Zero position of rear axle

1. 2.1  Raise wheel bearing housing using lifting equipment (e.g. > VAS 6931 - Engine and gearbox jack  ) until the lower trailing arm is horizontal. > Zero position of rear axle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper control arm (rear)

1. 3.1  Tighten screw -3-  on rear-axle carrier side section, counter at nut -3-  when doing so.

   > Initial tightening 90 Nm (66.4 ftlb.)

   > End tightening rotation angle + 90°

2. 3.2  Tighten screw -2-  on the wheel bearing housing.

   > Initial tightening 90 Nm (66.4 ftlb.)

   > End tightening rotation angle + 90_°  _

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

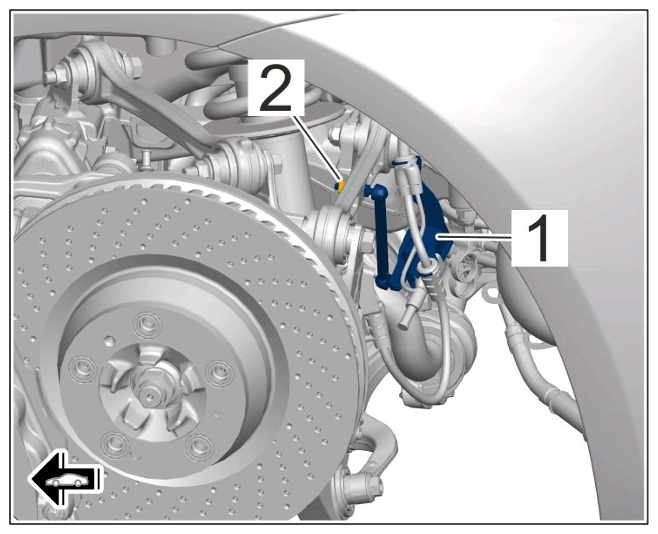

Angle sensor for headlight beam adjustment to upper control arm (rear)

1. 5.1  Position angle sensor for headlight beam adjustment linkage.
2. 5.2  Screw on and tighten nut -2-  .

   > Tightening torque 8 Nm (6 ftlb.)
