Technical Values

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Drive shaft to transmission flange Item 2: Replace cheese head bolt M10 x 46.5 with washer after removal Initial tightening 40 Nm (29.5 ftlb.)
G15527261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for drive shaft on transmission flange
Drive shaft to transmission flange Item 2: Replace cheese head bolt M10 x 46.5 with washer after removal Final tightening torque angle + 110°

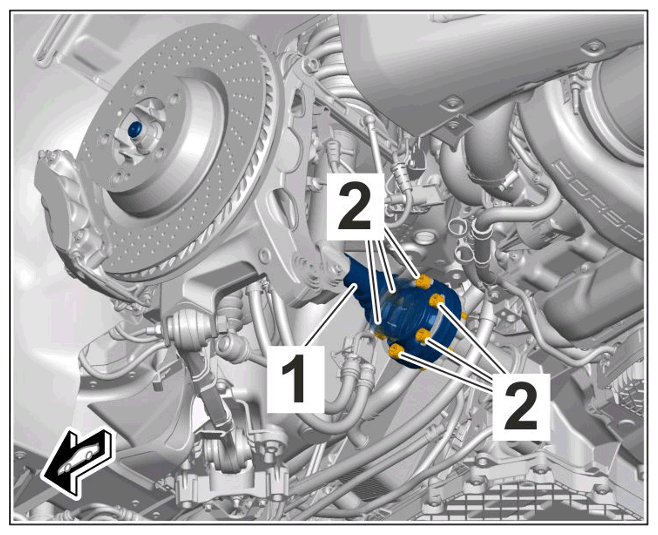

G15527262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for drive shaft on transmission flange
Drive shaft to transmission flange - 992 Dakar Item 2: Screw M10 x 1/replace screw with base after every removal Initial tightening 50 Nm (36.9 ftlb.)

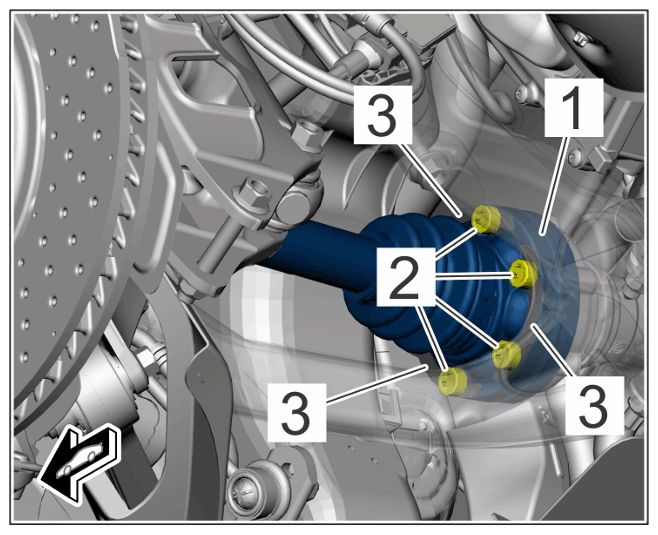

G15527263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner drive shaft
Drive shaft to transmission flange - 992 Dakar Item 2: crew M10 x 1/replace screws and washers after every removal Final tightening torque angle + 120°
G15527264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner drive shaft
Drive shaft to wheel hub Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! 1. Step 260 Nm (191.8 ftlb.)
Drive shaft to wheel hub Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! 2. Step + 120°
Drive shaft to wheel hub Item 1: Loosen lock nut M22 x 1.5 by one turn! 3. Step - 360°
Drive shaft to wheel hub Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! 4. Step 120 Nm (88.5 ftlb.)
Drive shaft to wheel hub Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! 5. Step + 120°

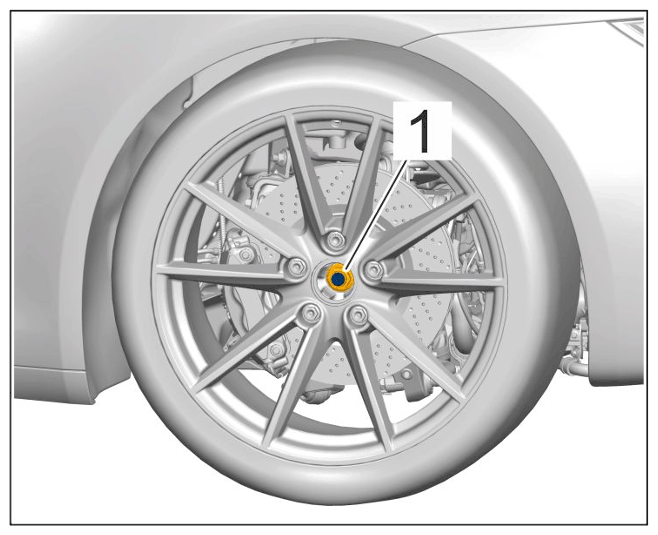

G15527265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening drive shaft to wheel hub
Drive shaft to wheel hub Item 1: Lock nut M22 x 1.5/replace lock nut after removal/Grease drive shaft splines with Molub AlloyPaste/Keep threading grease-free. Final tightening rotation angle 460 Nm (339.3 ftlb.)
G15527266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening drive shaft to wheel hub
