Technical Values

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

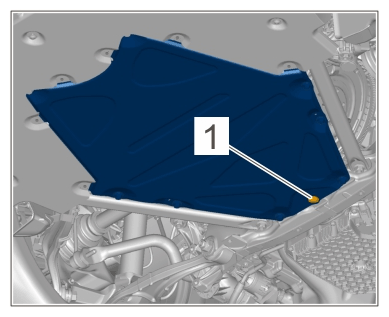

Rear cover	Item 1	Tightening torque	3 Nm (2 ftlb.)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

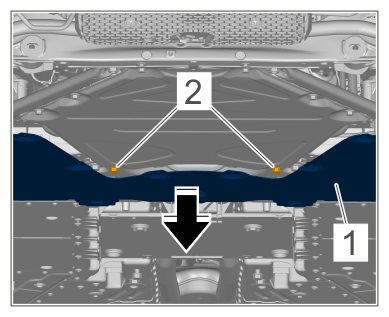

Rear cover	Item 2	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

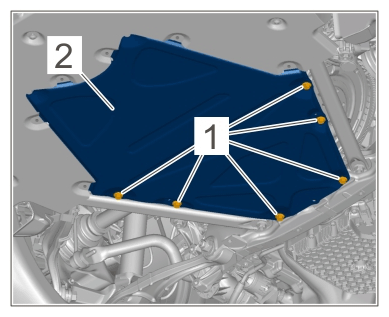

Rear cover	Item 1	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover
Rear cover	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
Support plate to transmission bracket	Item 2: Hexagon-head bolt M8 x 25	Tightening torque	30 Nm (22.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

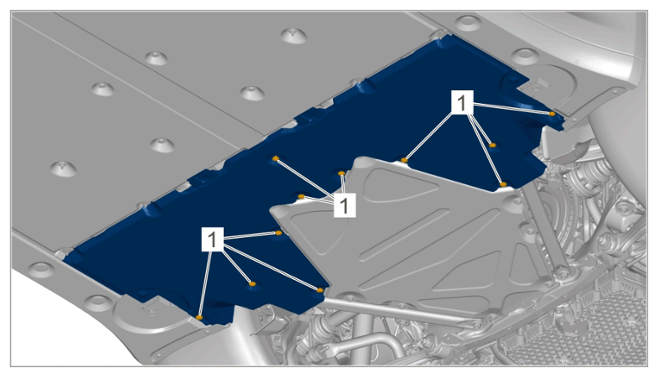

Support plate to strut Rear axle carrier	Item 1: Hexagon-head bolt M8 x 25	Tightening torque	30 Nm (22.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover (rear section)
Support plate to rear axle carrier	Item 1: Tapping screw	Tightening torque	3 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
