Removing Support Plate

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove expansion rivet -1-  .

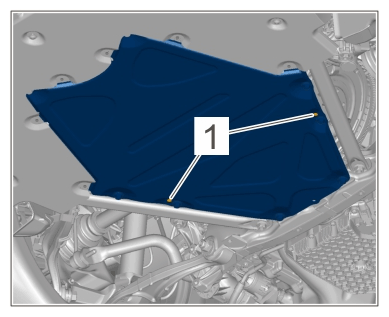

    G15527247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expansion rivet on support plate

  2. Unscrew screw -1-  .

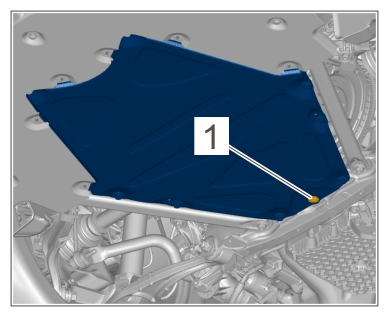

    G15527248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw on support plate

  3. Unscrew and remove screws -1  .

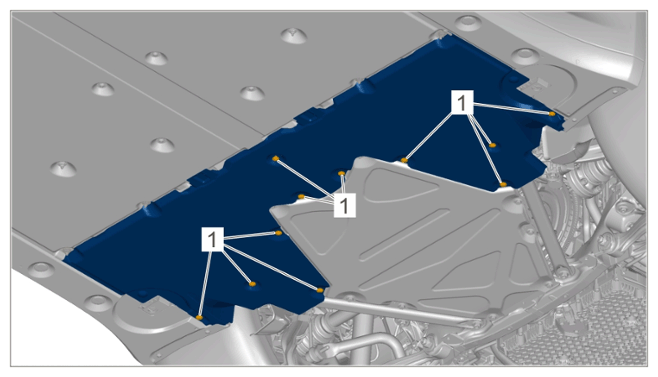

    G15527249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear cover

  4. Loosen support plate.

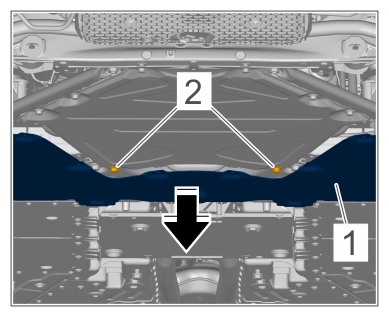

    G15527250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on support plate

    1. 4.1  Bend rear cover -1-  down slightly. -arrow-
    2. 4.2  Unscrew and remove screws -2-  .
  5. Unscrew screws -1-  and remove support plate -2-  .

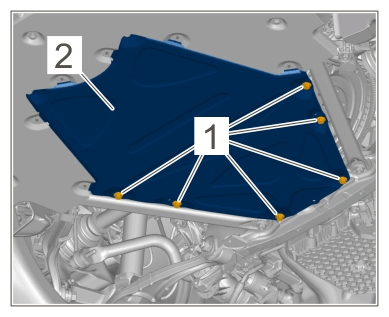

    G15527251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on support plate
