Installing Support Plate: Notes

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Tighten -1- screws. > Tightening torque Tightening torque 30 Nm (22 ftlb.) 30 Nm (22.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

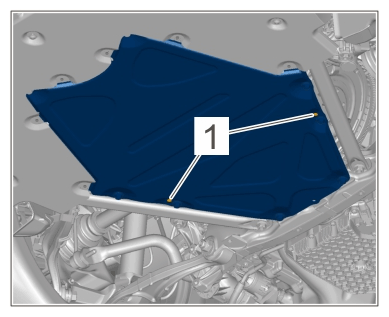

Screws on support plate
Tighten -1- screws. > Tightening torque Tightening torque 30 Nm (22 ftlb.) 30 Nm (22.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

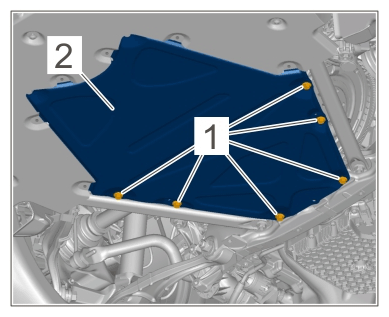

Screws on support plate
Tighten -1- screws. > Tightening torque 3 Nm (2 ftlb.) + 10 % - 15 %

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

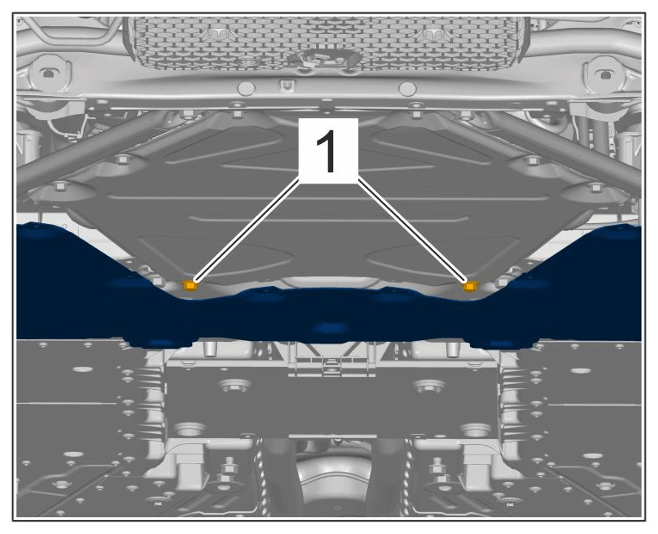

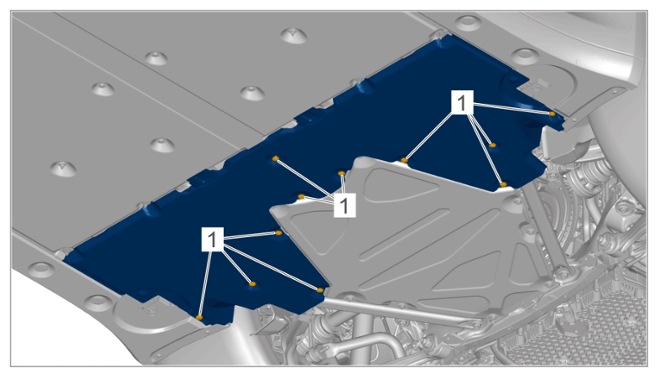

Mounting for rear cover
Tighten -1- screw. > Tightening torque Tightening torque 3 Nm (2 ftlb.) 3 Nm (2.2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

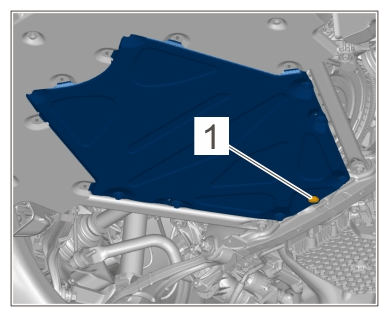

Screw on support plate
Install expansion rivet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Expansion rivet on support plate
