Removing Trailing Arm

Information

Applies only to vehicles with grey cast iron brakes and rear axle steering.  Trailing arm -1-  is removed together with brake disc air guide -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

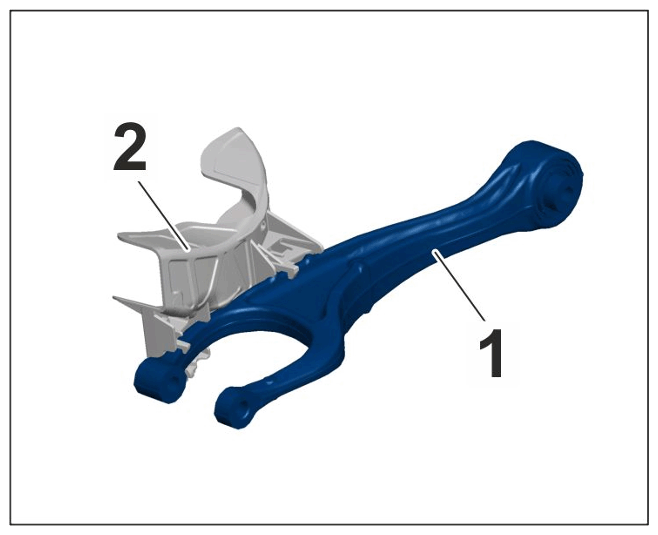

Trailing arm with brake disc air guide

1. Remove trailing arm -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

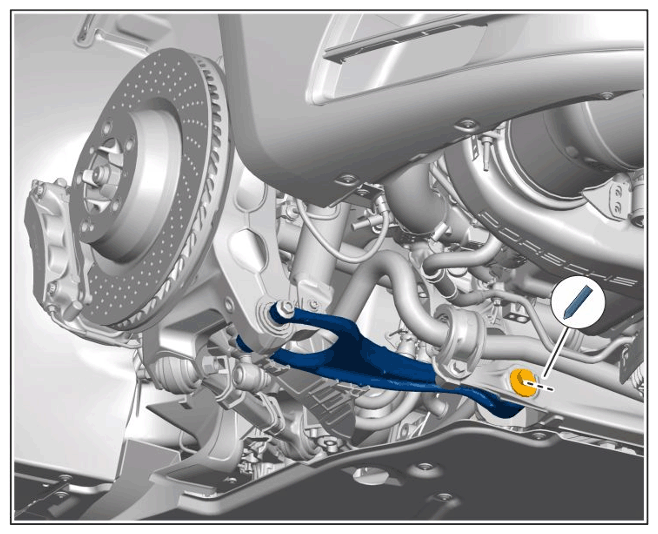

   Mounting for trailing arm

   1. 1.1  Mark eccentric position for installation. > Mounting for trailing arm on rear axle carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for trailing arm on rear axle carrier

   2. 1.2  Loosen threaded joint securing trailing arm to wheel bearing housing -2-  .
   3. 1.3  Loosen threaded joint securing trailing arm to rear axle cross member -3-  .
2. Applies only to vehicles with grey cast iron brakes and rear axle steering:  If you are replacing the trailing arm: Convert brake disc air guide to suit the new trailing arm.

   46161921 REMOVING AND INSTALLING BRAKE DISC AIR GUIDE (REAR)
