Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Rear-axle carrier side section to body (rear) | M12 x 1.5 x 126 stud | Tightening torque | 30 Nm (22.1 ftlb.) | ||
| Rear-axle carrier side section to body (rear) | M12 x 1.5 hexagon nut/always replace hexagon nut following removal | Initial tightening | 90 Nm (66.4 ftlb.) | ||
| Rear-axle carrier side section to body (rear) | M12 x 1.5 hexagon nut/always replace hexagon nut following removal | Final tightening | + 90° | ||
| Rear-axle carrier side section to body (centre and front) | M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Rear-axle carrier side section to body (centre and front) | M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal | Final tightening | + 180° | ||
| steering tie rod to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80/replace following removal | Initial tightening | 60 Nm (44.3 ftlb.) | ||
| Tie rod to wheel bearing housing | Hexagon-head bolt M12 x 1.5 x 80/replace following removal | Final tightening torque angle | + 90° | ||
| steering tie rod to rear-axle carrier side section (toe eccentric adjuster) | Eccentric screw M12 x 1.5 x 97 + eccentric washer + hexagon nut | Tightening torque | 100 Nm (73.8 ftlb.) | ||
| Drive shaft to transmission flange | Item 2. Replace cheese head bolt M10 x 46.5 with washer after removal | Initial tightening | 40 Nm (29.5 ftlb.) | ||
|

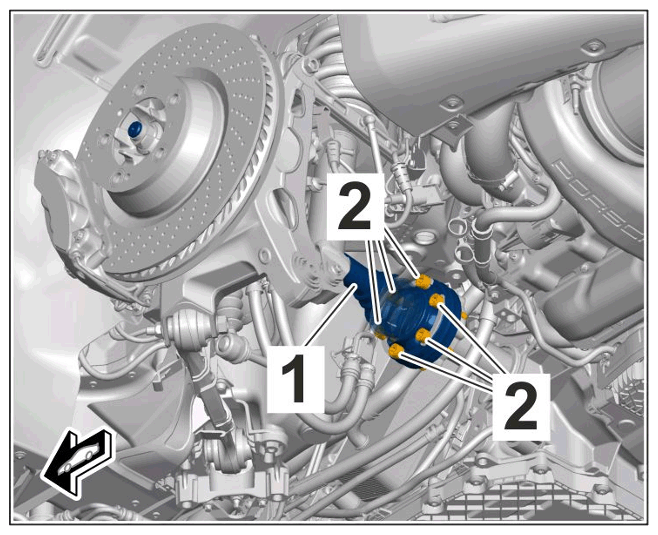

Mounting for drive shaft on transmission flange |
|||||
| Drive shaft to transmission flange | Item 2: Replace cheese head bolt M10 x 46.5 with washer after removal | Final tightening torque angle | + 110° | ||
|
Mounting for drive shaft on transmission flange |
