Removing Rear Axle Carrier

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Rear-axle carrier is removed together with the anti-roll bar.

Remove anti-roll bar on both sides of the vehicle from the connecting link -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

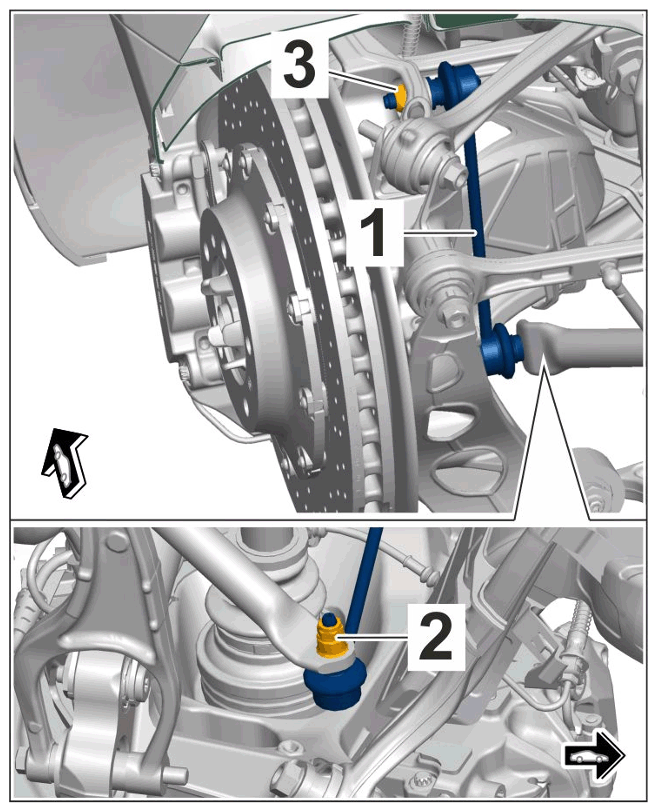

Mounting for connecting link (conventional)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

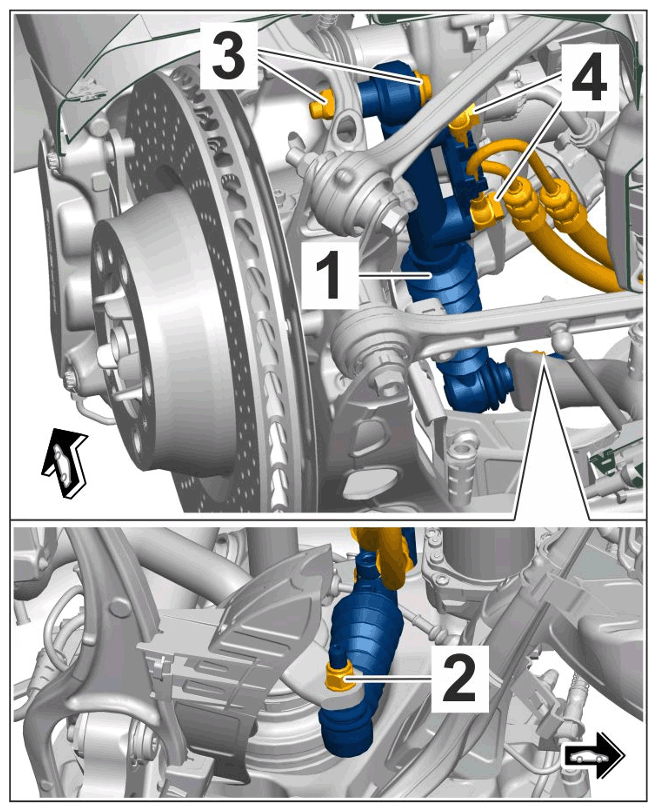

Mounting for connecting link (PDCC)
1. 1.1 Unscrew nut -2- and counter at the articulated bolt on the connecting link.
Remove rear axle carrier -1- on both sides of the vehicle from the rear axle carrier side section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

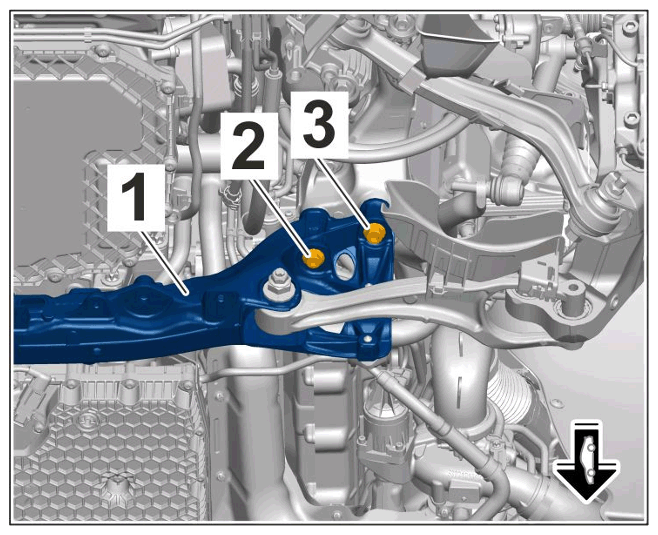

Rear axle carrier mounting
1. 2.1 Support rear axle carrier with > VAS 6931 - Transmission and Engine Jack .
2. 2.2 Unscrew and remove screws -2 and 3- .
3. 2.3 Lower the rear axle carrier.
