Installing Rear Axle Carrier

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit rear axle carrier -1-  on both sides of the vehicle at the rear axle carrier side section.

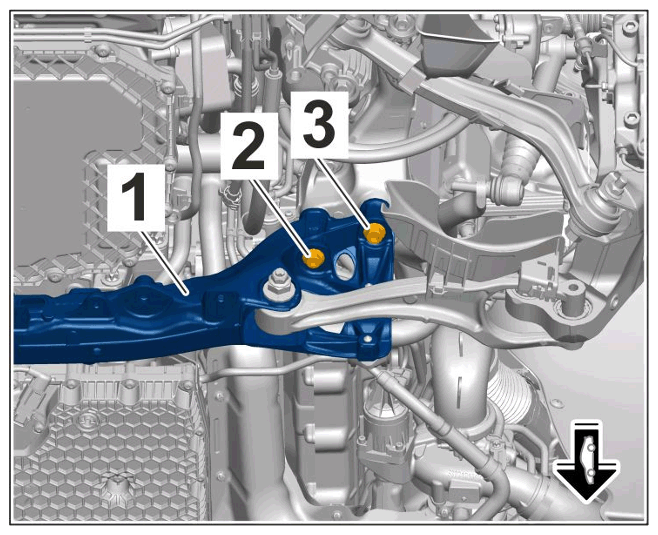

    G15527210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing rear axle carrier

    1. 1.1  Position rear axle carrier in installation position using > VAS 6931 - Transmission and Engine Jack  .
    2. 1.2  Tighten screws -2-  . > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
    3. 1.3  Tighten screws -3-  . > Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
    4. 1.4  > VAS 6931 - Transmission and Engine Jack  must now be lowered.
  2. Fit anti-roll bar on both sides of the vehicle at the connecting link -1-  .
    G15527211Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (conventional)

    G15527212Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (PDCC)

    1. 2.1  Tighten nut -2-  and counter at the articulated bolt on the connecting link.

      Connecting link (conventional): > Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening + 30°

      Connecting link (PDCC): > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening angle + 50 (37 ftlb.) °
