Removing Boost Pressure Sensor

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove boost pressure sensor -1-  .
    1. 1.1 Release and disconnect cable plug -3-  .
    2. 1.2 Unscrew screw -2-  and remove boost pressure sensor -1-  .

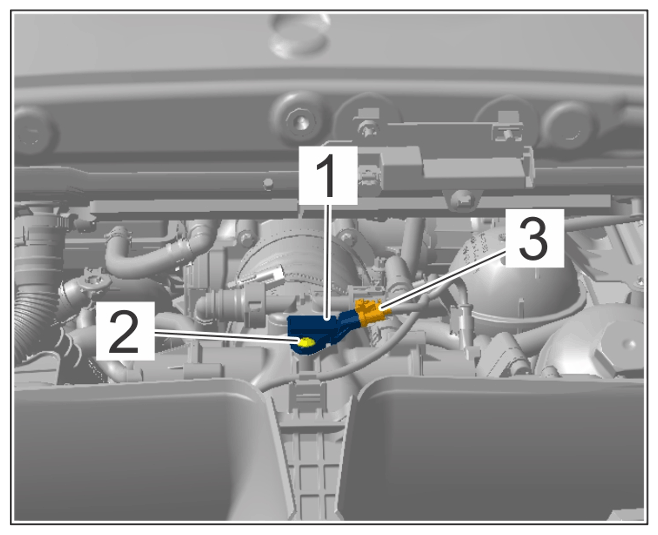

G15508269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Boost-pressure sensor
