Installing Boost Pressure Sensor

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install boost pressure sensor.
1. 1.1 Check O-ring and replace it if damaged.
2. 1.2 Tighten screw -3- .
  > Tightening torque 3 Nm (2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

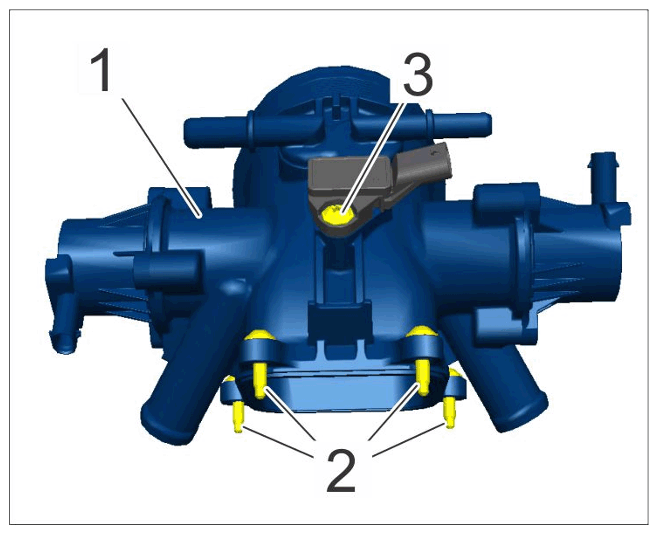

Pressure pipe with boost pressure sensor
