Removing Hose Line For Bleeding

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: NOTIFICATION
Mixing fluids

Risk of damage to components
→ Close off all openings immediately after exposing them (with adhesive tape, suitable stoppers).

Information

Open connections and lines must be closed off using suitable stoppers or caps.

Information

O-rings must always be replaced.
O-rings must be coated lightly with Kluber Syntheso Glep.

Have a suitable container ready for catching engine oil.
Remove left hose line for bleeding -1- .
1. 2.1 Unscrew screw -3- .
2. 2.2 Loosen clamp -2- and pull off hose line for bleeding -1- .
3. 2.3 Replace O-ring.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose line for bleeding, left
Remove right hose line for bleeding -1- .
1. 3.1 Unscrew screw -3- .
2. 3.2 Loosen clamp -2- and pull off hose line for bleeding -1- .
3. 3.3 Replace O-ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

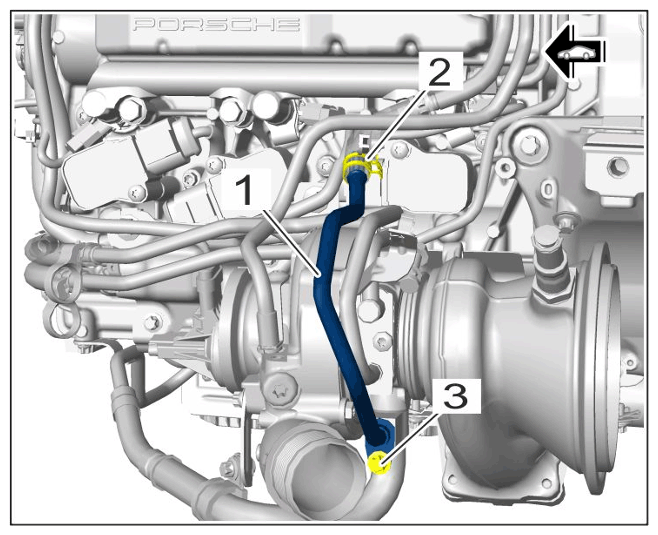

Hose line for bleeding, right
