Component Information

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

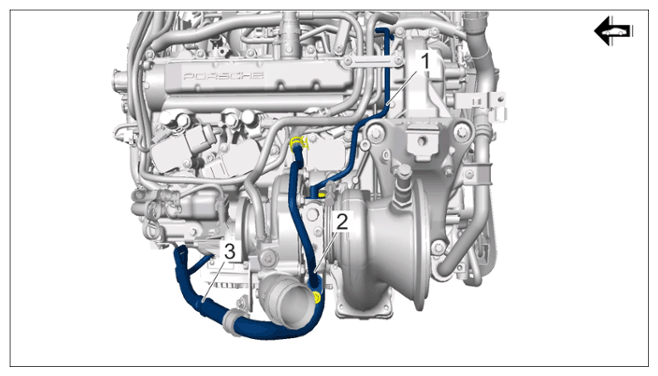

Fig 1: Right Turbocharger Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component information for right turbocharger

1	Oil supply line
2	Oil return line
3	Hose line for bleeding

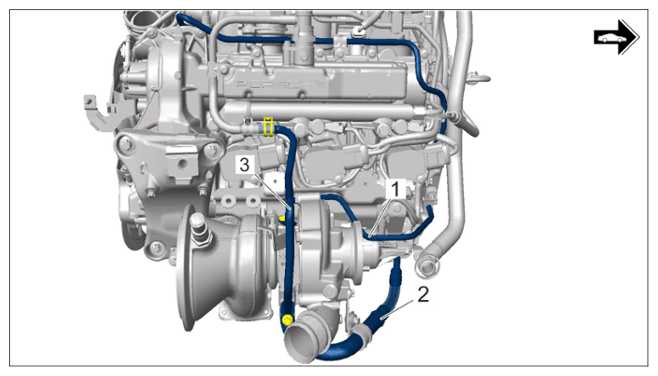

Fig 2: Left Turbocharger Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component information - left turbocharger

1	Oil supply line
2	Hose line for bleeding
3	Oil return line
