Removing Oil Supply Line

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Have a suitable container ready for catching engine oil.
NOTE:
NOTIFICATION
Mixing fluids
- Risk of damage to components
  → Close off all openings immediately after exposing them (with adhesive tape, suitable stoppers).
Information
- O-rings must always be replaced.
- O-rings must be coated lightly with Kluber Syntheso Glep.
Remove oil supply line at the left -4- .
1. 2.1 Unscrew screw -2- on the turbocharger line holder.
2. 2.2 Unscrew screws -1- on oil lines on the cylinder head.
3. 2.3 Unscrew screw -3- on oil line (pressure side) on the turbocharger.
4. 2.4 Unclip oil supply line -4- from the retaining clips.
5. 2.5 Guide out and remove oil supply line -4- .
6. 2.6 Replace O-rings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

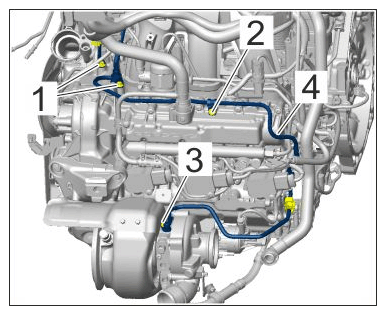

Oil supply line, left
