Removing And Installing Electronic Adjuster For Turbocharger (VTG)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

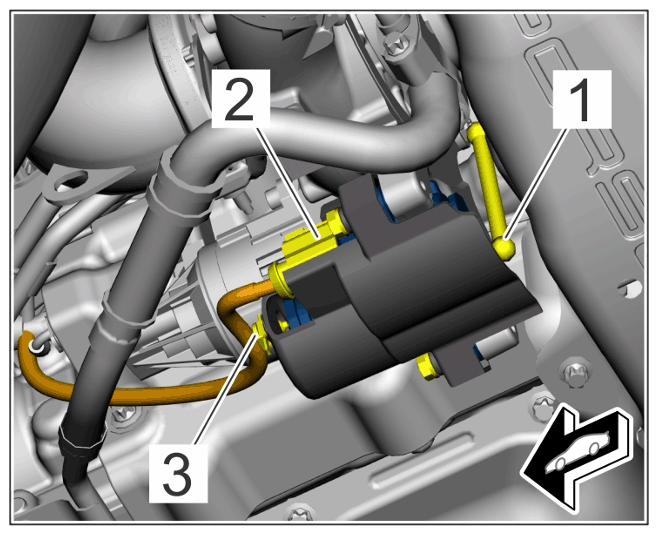

  1. Unclip control rods -1-  , unlock and remove electric plug connection -2-  , unclip cable -3-  .
    G15508236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control rod and wiring for electronic adjuster (VTG)

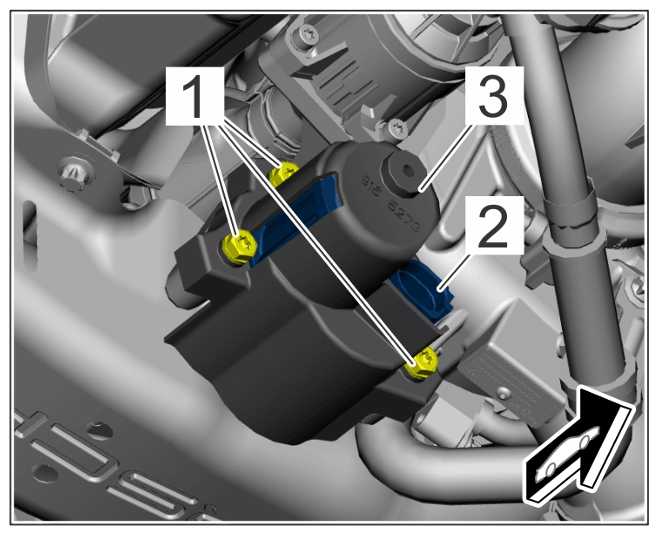

  2. Remove electronic adjuster (VTG) -2-  .
    G15508237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electronic adjuster (VTG) mounting

    1. 2.1 Unscrew screws -1-  and remove electronic adjuster (VTG) -2-  with shield -3-  .
  3. Installation is performed in reverse order to removal.

    Secure electronic adjuster (VTG) to >.
