Removing Electronic Adjuster

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

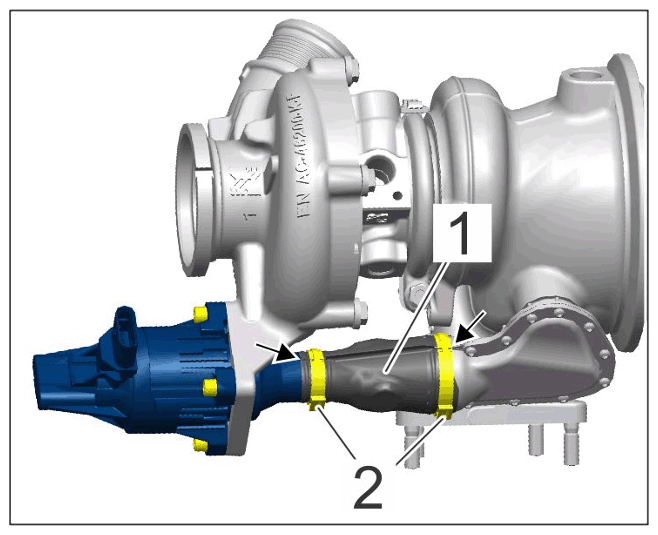

Remove shield -1- on kinematics.
1. 1.1 Remove single-lug clamps -2- , bend up shield and remove it.
2. 1.2 Replace shield and single-lug clamps (available as a set).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shield on kinematics for electronic adjuster

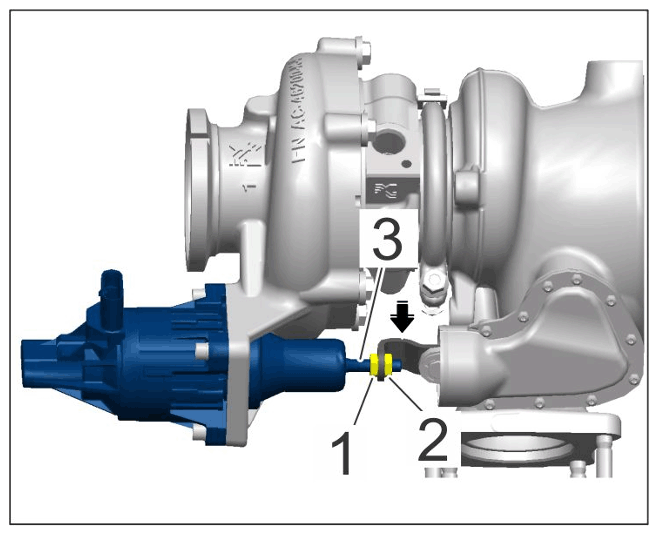

Loosen hexagon nuts -1 and 2- on the pull rod -3- . Counter at the lever on the kinematics from the rear using an open-ended wrench (a/f 16) -arrow- .
1. 2.1 Unscrew the lock nut -2- on the lever.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull rod of kinematics on electronic adjuster

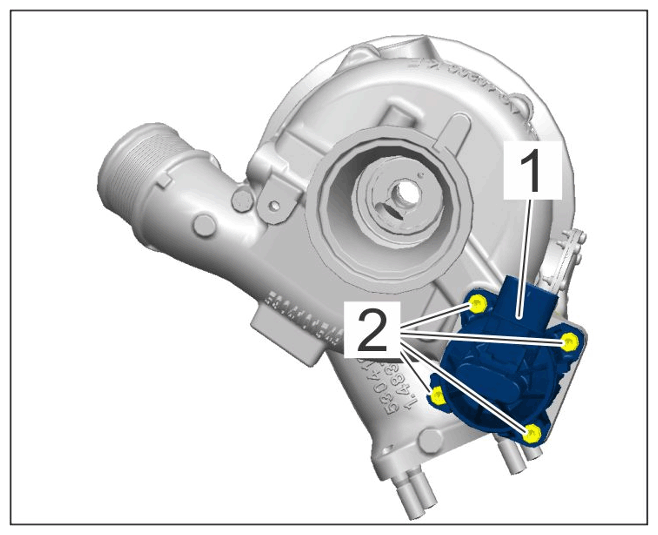

Unscrew screws -2- on electronic adjuster -1- and remove electronic adjuster.
1. 3.1 If you are replacing the electronic adjuster, unscrew the adjusting nut from the pull rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electronic adjuster on turbocharger
