Installing Charge Air Cooler

1. Install air guides.

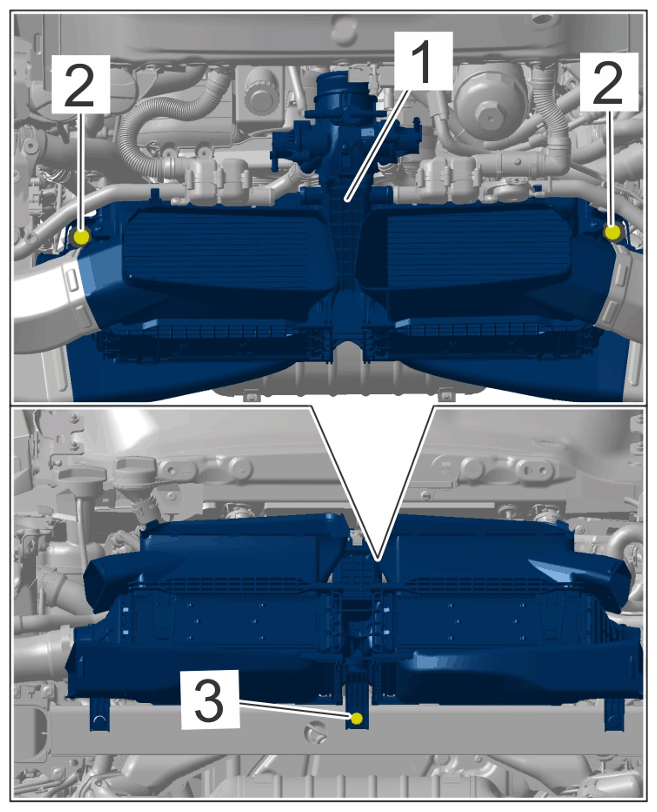

2. Position and secure charge-air cooler -1-  .
   1. 2.1 Insert new  pin -3-  into the support sleeve and lock support panel.
   2. 2.2 Fit and tighten new screws -2-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Charge air cooler

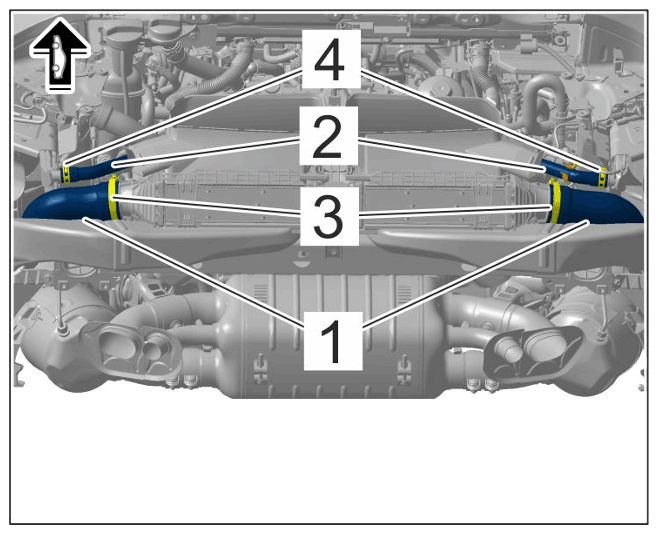

3. Install pressure hose -1-  and recirculating air hose -2-  .

   Coat hoses with Klubergel Plus for assembly.

   1. 3.1 Tighten screw-type clamps -3-  .

      > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)

   2. 3.2 Secure recirculating air hose with a spring band clamp -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure hose and recirculating air line

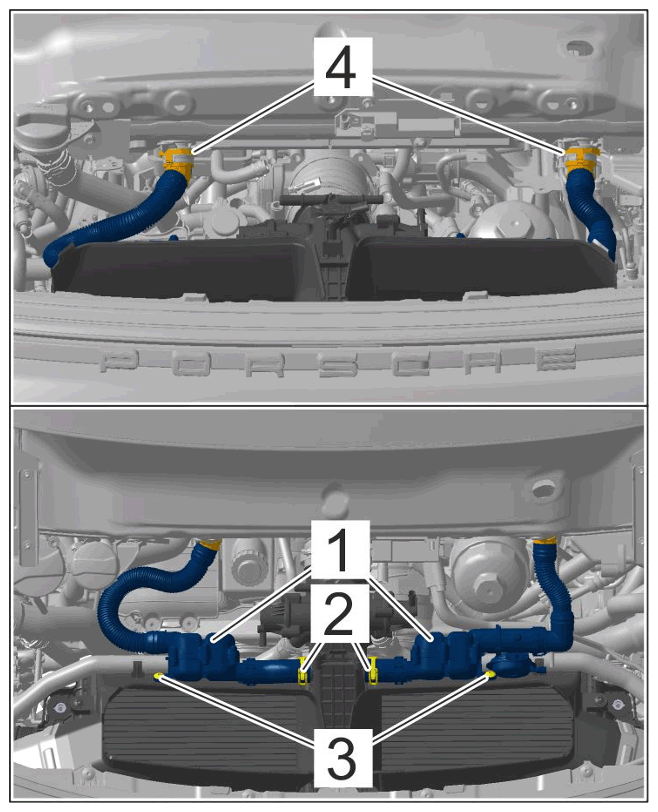

4. Install loudspeakers for exterior acoustics -1-  .
   1. 4.1 Connect hoses and tighten spring band clamps -2-  .
   2. 4.2 Fit and tighten screws -3-  .

      > Tightening torque 2 Nm (1.5 ftlb.) + 0.2 Nm (0.1 ftlb.)

   3. 4.3 Connect plug connection -4-  to the body and check that it is fitted securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loudspeakers for exterior acoustics

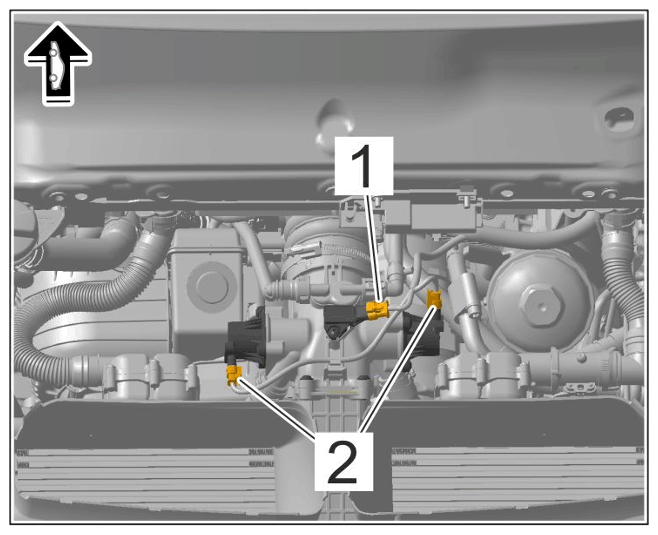

5. Connect cable plugs for boost pressure sensor -1-  and recirculating air valves -2-  and check that they are fitted securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable plugs for boost pressure sensor and ambient air valves

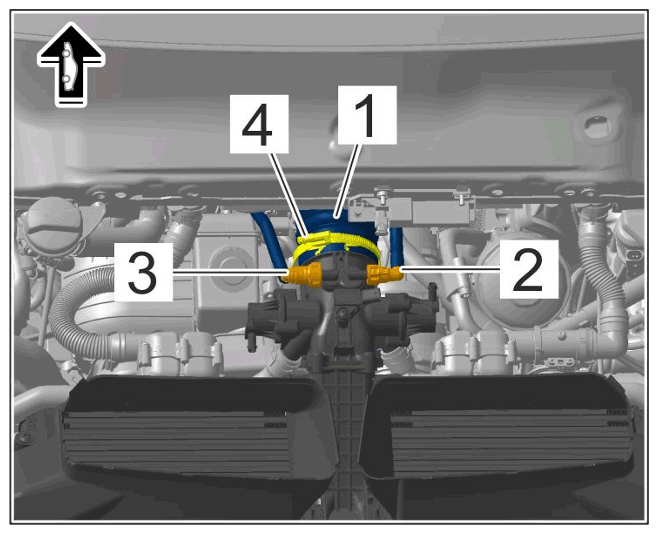

6. Secure air box for throttle valve -1-  and connect positive crankcase ventilation line -2-  and vacuum line -3-  .
   1. 6.1 Secure air box for throttle valve -1-  on the charge-air cooler with a screw-type clamp -4-  .

      > Tightening torque 5.5 Nm (4.1 ftlb.) +/- 0.5 Nm (0.4 ftlb.)

   2. 6.2 Connect positive crankcase ventilation line -2-  and check that it is fitted securely.
   3. 6.3 Connect vacuum line -3-  and check that it is fitted securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air box for throttle valve on charge-air cooler
