Installing Charge Air Cooler

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove moulded hose -1-  on both sides.

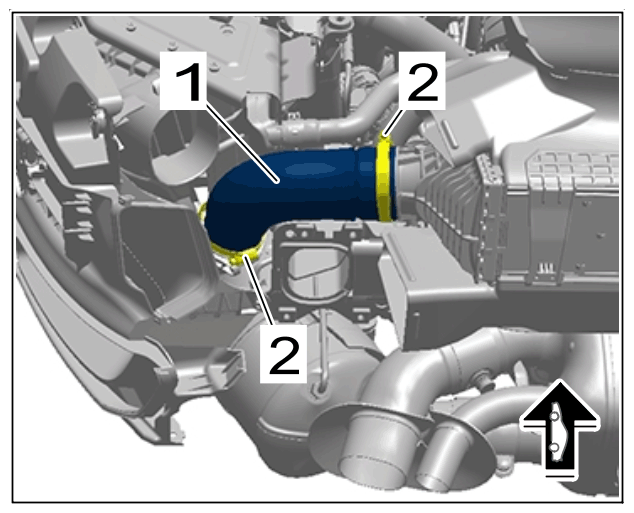

    G15508218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose on charge-air cooler

    1. 1.1 Undo screw-type clamps -2-  and remove moulded hose -1-  .
  2. Disconnect vacuum line -1-  , positive crankcase ventilation line -2-  and electric plug connections -3-  from pressure pipe -4-  .
    G15508219Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe

    1. 2.1 Release and disconnect plug-coupling -5-  and move vacuum line -1-  aside.
    2. 2.2 Release and disconnect plug-coupling -6-  and move positive crankcase ventilation line -2-  aside.
    3. 2.3 Close off line connections using suitable stoppers.
    4. 2.4 Unclip clip -7-  .
    5. 2.5 Release and disconnect electric plug connections -3-  and move electric line -8-  aside.

    Information

    The central support sleeve cannot be removed without being destroyed and must be replaced following removal.

  3. Remove charge-air cooler -1-  .
    G15508220Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Charge air cooler

    1. 3.1 Loosen screw-type clamp -2-  .
    2. 3.2 Drill out head of support sleeve -3-  using a drill bit (approx. 10 mm in diameter) and push support sleeve -3-  forwards through the bracket.
    3. 3.3 Unscrew and remove screws -4-  .
    4. 3.4 Remove charge-air cooler -1-  .


  1. Install charge-air cooler -1-  .

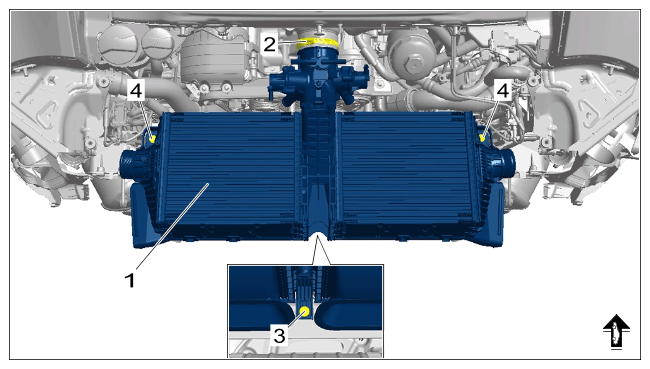

    G15508221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Charge air cooler

    1. 1.1 Position charge-air cooler -1-  .
    2. 1.2 Insert new  support sleeve -3-  .
    3. 1.3 Screw in and tighten new  screws -4-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

    4. 1.4 Tighten screw-type clamp -2-  .

      > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

  2. Connect vacuum line -1-  , positive crankcase ventilation line -2-  and electric plug connections -3-  to pressure pipe -4-  .

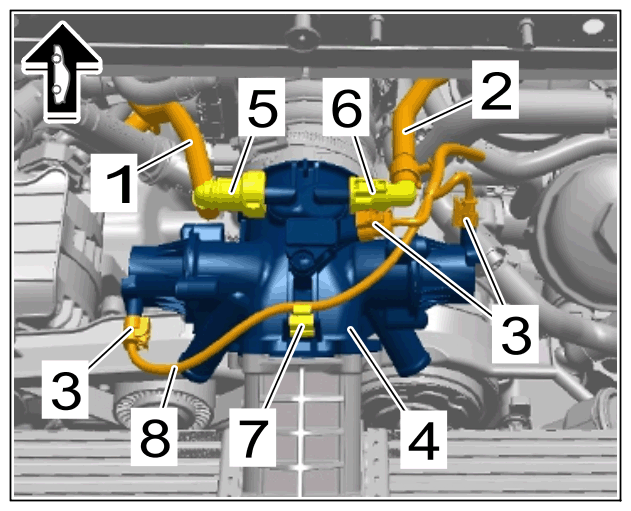

    G15508222Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe

    1. 2.1 Position electric line -8-  , then push on and lock electric plug connections -3-  .
    2. 2.2 Clip in clip -7-  .
    3. 2.3 Position positive crankcase ventilation line -2-  and push plug-in coupling -6-  onto pressure pipe -4-  .
    4. 2.4 Position vacuum line -1-  and push plug-in coupling -5-  onto pressure pipe -4-  .
  3. Installing -1-  moulded hose.
    G15508223Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded hose on charge-air cooler

    1. 3.1 Coat the inside of the moulded hose -1-  with Kluberplus gel  .
    2. 3.2 Position the -1-  moulded hose.
    3. 3.3 Tighten screw-type clamps -2-  .

      > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
