Removing Pressure Pipe

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Expose pressure pipe.
1. 1.1 Release and disconnect cable plug -1- and loosen clip -2- .
2. 1.2 Release and pull off joiner -3- .
3. 1.3 Loosen hose clamp -5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

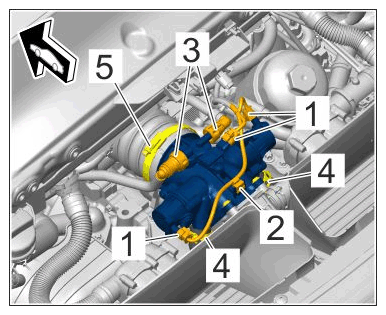

Add-on parts for pressure pipe
Remove pressure pipe -2- .
1. 2.1 Unscrew and remove screws -1- .
2. 2.2 Disconnect pressure pipe -2- from hose -3- and guide it out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mount for pressure pipe
