Installing Pressure Pipe

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install pressure pipe -2- .
1. 1.1 Disconnect pressure pipe -2- from hose -3- and guide it out.
2. 1.2 Fit and tighten screws -1- .
  > Tightening torque 6 Nm (4.5 ftlb.) - 0.3 Nm (0.2 ftlb.) + 0.5 Nm (0.35 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

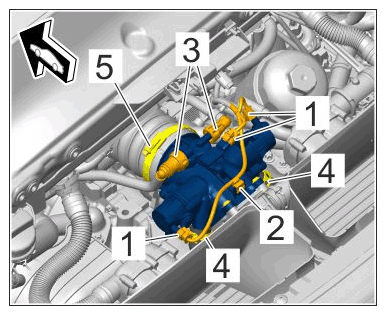

Mount for pressure pipe
Complete the pressure pipe.
1. 2.1 Secure hose clamp -5- .
  > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
2. 2.2 Push on joiner -3- .
3. 2.3 Plug in cable plug -1- and secure clip -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Add-on parts for pressure pipe
