Removing Pressure Pipe (At The Side)
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

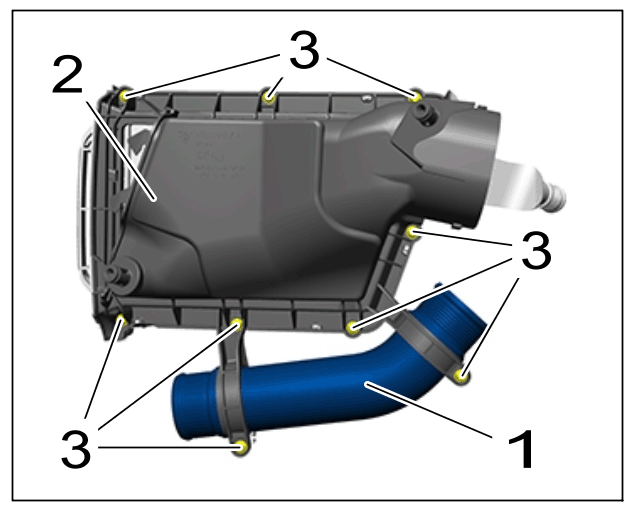

- Remove pressure pipe (at the side) -1-
.
- 1.1 Unscrew screws -3- and remove lower part of air cleaner -2- .
- 1.2 Remove pressure pipe (at the side) -1- .
Pressure pipe (at the side)
