Installing Pressure Pipe (At The Side)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

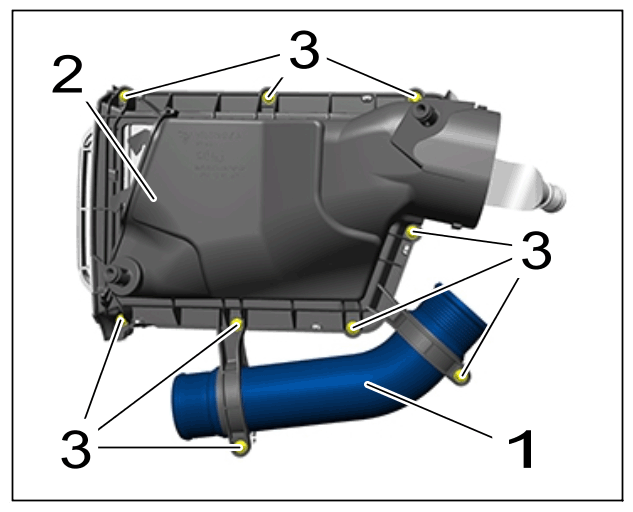

Install pressure pipe (at the side) -1- .
1. 1.1 Position pressure pipe (at the side) -1- .
2. 1.2 Position lower part of air cleaner -2- and fit and tighten screws -3- .
  > Tightening torque 2.2 Nm (1.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe (at the side)
