Remove Moulded Hose From Turbocharger

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove moulded hose -1-  .
    1. 1.1 Undo screw-type clamps -2-  and remove moulded hose -1-  .

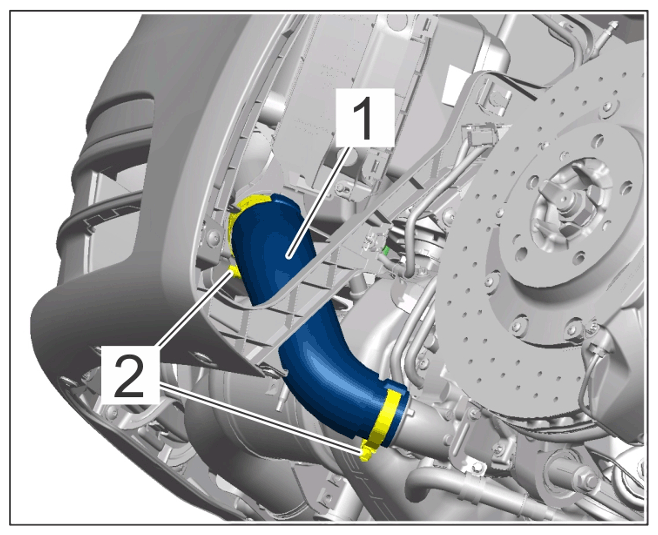

G15508203Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moulded hose on turbocharger
