Removing Left Coolant Supply Line

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Open connections and lines must be closed off using suitable stoppers or caps.

Remove coolant line -1- .
1. 1.1 Unscrew and remove screws -2- .
2. 1.2 Unscrew screw -3- .
3. 1.3 Loosen clamp -4- and pull off coolant line -1- .
4. 1.4 Loosen coolant line -1- from holder -5- .
5. 1.5 Loosen wiring harness for oxygen sensor from holder -6- .
6. 1.6 Disconnect coolant line -1- on the turbocharger.
7. 1.7 Collect emerging coolant.
8. 1.8 Replace O-rings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

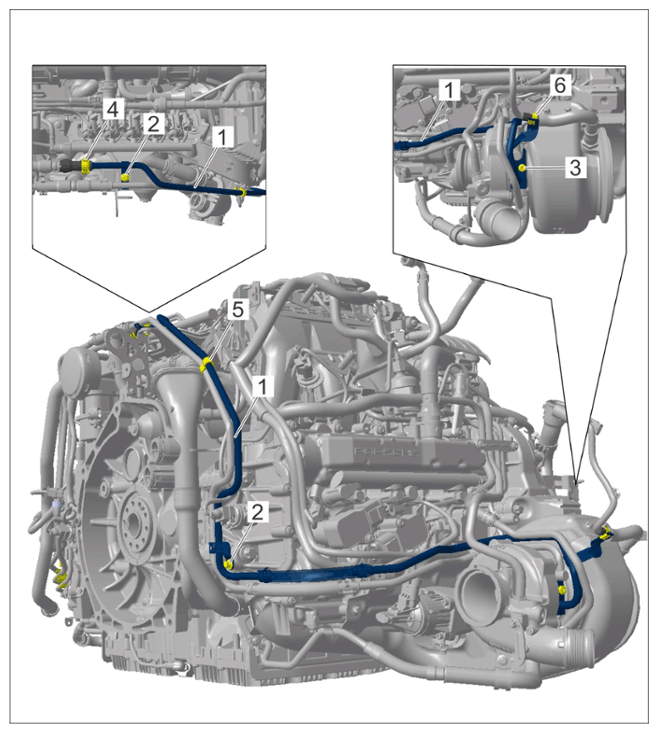

Coolant supply line, left
