Coolant Lines For Turbocharger

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

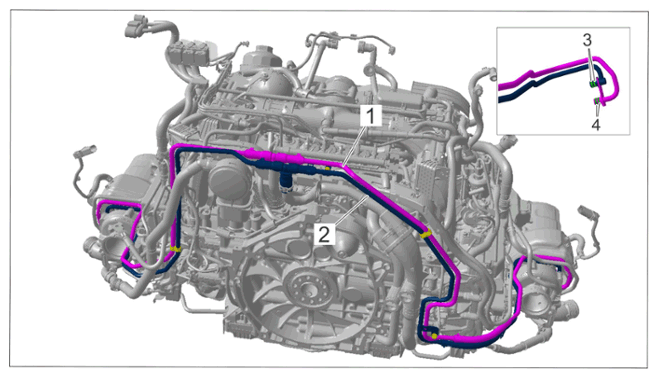

Fig 1: Coolant Lines For Turbocharger Components Location
G15508194Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines for turbocharger

1  Coolant supply line
2  Coolant return line
3  O-rings/replace
4  O-rings/replace
