Removing Intake Manifold

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

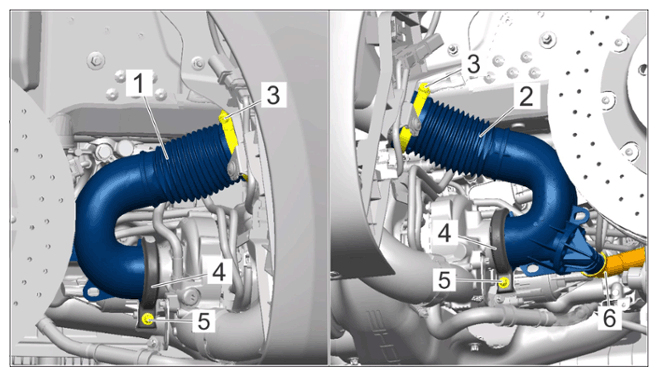

Installation overview on turbocharger at the left -1- and right -2- :

Fig 1: Intake Pipe On Turbocharger Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake pipe on turbocharger

1	Left intake pipe
2	Right intake manifold
3	Screw-type clamps, top
4	Screw-type clamps, bottom (V-band clamp) - replace
5	Screws on V-band clamp
6	Vent line connection - right intake pipe

Remove intake manifold -1- .
1. 1.1 Loosen upper screw-type clamp -2- .
2. 1.2 Loosen screw-type clamp (V-band clamps) at the bottom -3- .
  Replace the bottom (V-band) screw-type clamp!
3. 1.3 Also disconnect vent line -5- at the right-hand side.

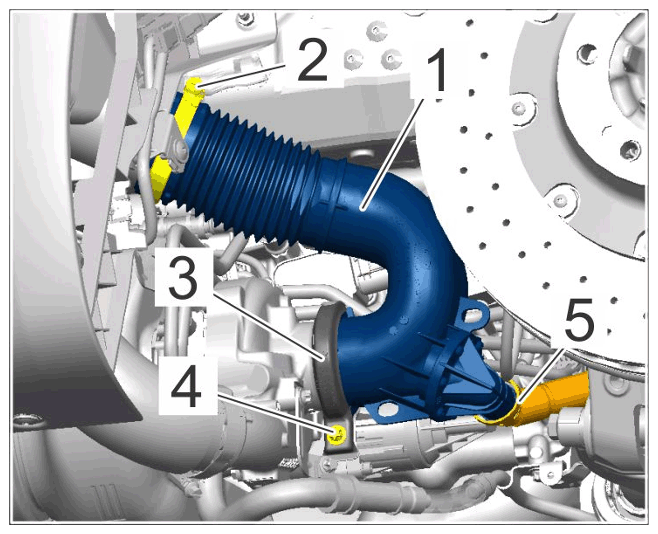

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe on turbocharger, right
Disconnect and remove intake manifold.
Replace O-ring on the connection to the turbocharger.
