Installing Intake Manifold

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert intake manifold.
Be careful of the groove on the turbocharger!
1. 1.1 Fit intake manifold on turbocharger and air intake.
2. 1.2 Connect vent line at the right-hand side.

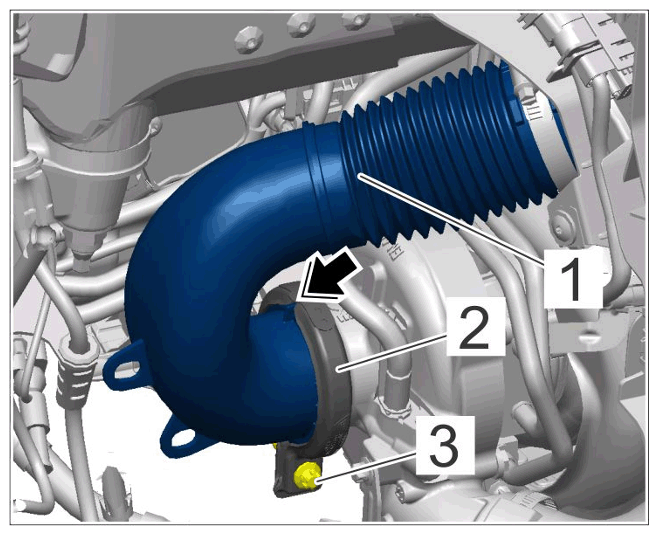

Install new V-band clamp -2- at the bottom.
1. 2.1 Make sure that it is installed at the correct position! Position gap in the clamp on the fixing nipple on the intake manifold -arrow- .
2. 2.2 Tighten screw -3- .
  > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing V-band clamp

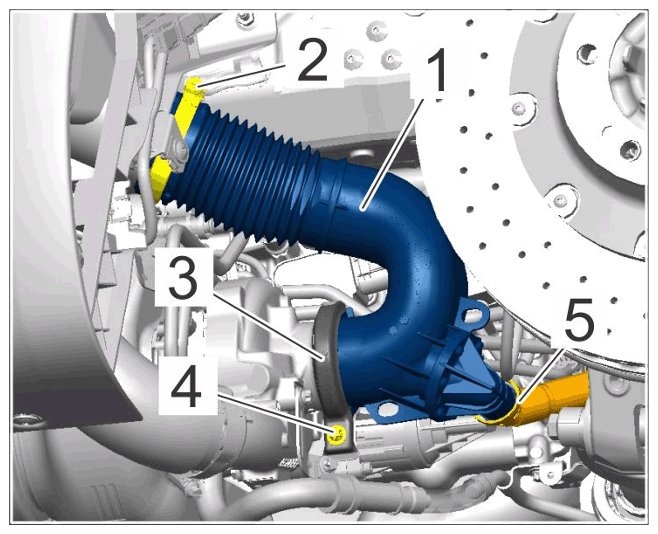

Align and tighten screw-type clamp -2- at the top.
> Tightening torque 2.5 Nm (1.75 ftlb.) + 0.5 Nm (0.3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe on turbocharger, right
