Removing Air Guide

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

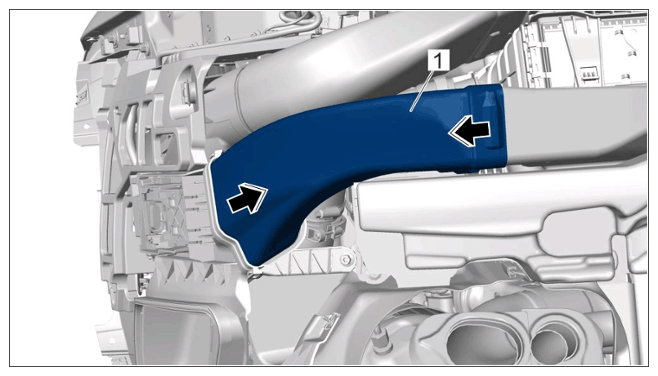

  1. Unclip air guide -1-  (-Arrows-  ) and remove it.
G15508189Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for charge-air cooling
