Removing Engine-Compartment Blower

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Moving components

Danger of limbs being trapped or severed
→ Do not reach into the danger area.

→ Secure the system to prevent it from being activated accidentally.

→ Keep third parties away from the danger area.

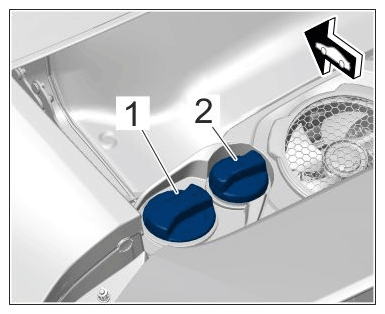

Unscrew cap on coolant reservoir -1- and oil filler neck -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on oil filler neck and coolant

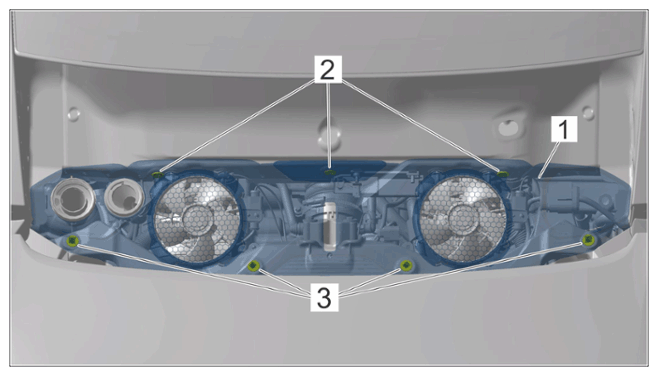

Carefully remove cover -1- on engine-compartment blower.
Carefully unclip cover from the rubber sleeves at the front -2- and rear -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine-compartment blower cover
Tighten cap on the oil filler neck and coolant reservoir.
Information
- Temperature changes can cause the engine-compartment blower to start up at any time (protection against overheating).
- Always disconnect the plug connection at the rear spoiler bracket before removal.

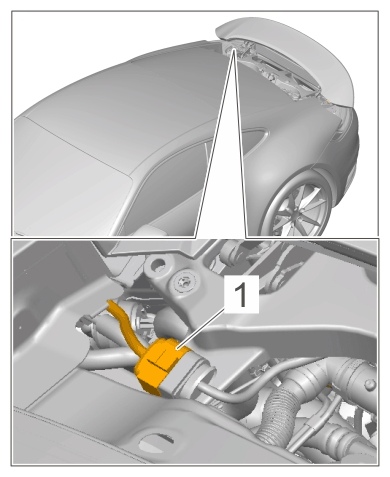

Release and disconnect central connector -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

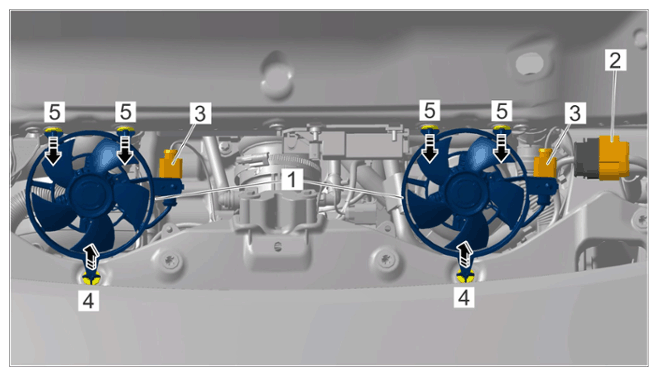

Remove engine-compartment blower at the left and right -1- .
Make sure that the central connector -2- is disconnected.

Disconnect cable plug -3- for engine-compartment blower.

Pull engine-compartment blower out of the rubber sleeves at the rear -arrow 4- first, then at the front -arrows 5- .

Remove engine-compartment blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine-compartment blower at the left and right
