Installing Engine-Compartment Blower

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Moving components

Danger of limbs being trapped or severed
→ Do not reach into the danger area.

→ Secure the system to prevent it from being activated accidentally.

→ Keep third parties away from the danger area.

Information

Make sure that the rubber mountings are not crushed or damaged during installation.

Coat rubber sleeves with assembly grease.

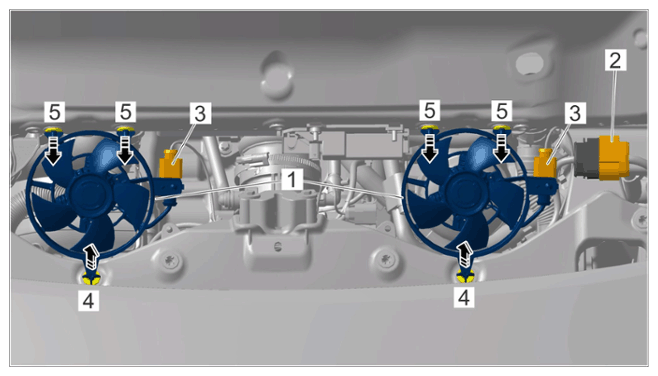

Install engine-compartment blower -1- at the left and right.
Clip in engine-compartment blower at the front -5- rubber sleeves, then at the rear -4- .

Connect cable plug -3- for engine-compartment blower.

Connect central connector -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine-compartment blower at the left and right
Position cover on engine-compartment blower and clip it in.

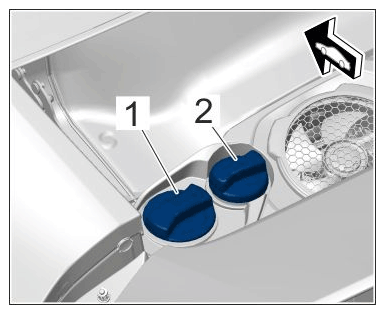

Screw on cap on coolant reservoir -1- and oil filler neck -2- and check that it is seated securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on oil filler neck and coolant
