Installing Middle Radiator

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

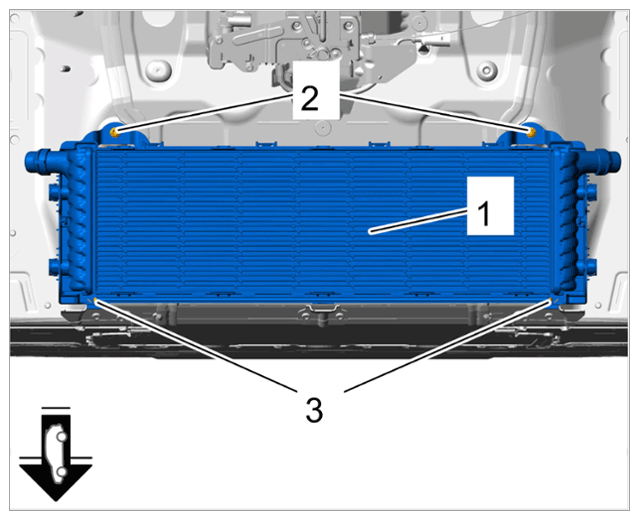

Install middle radiator -1- .
Position middle radiator -1- .

Fit and tighten nuts -2- and screws -3- .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Middle radiator

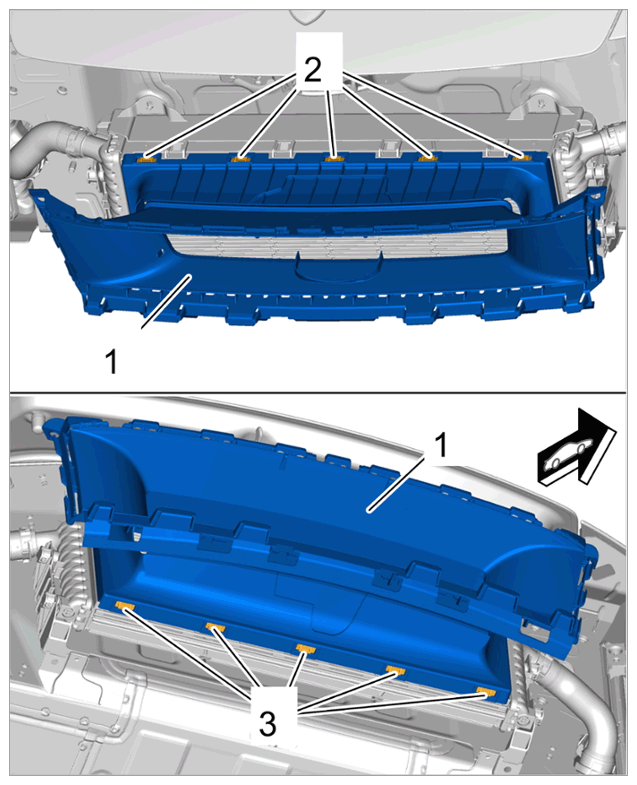

Install air guide for middle radiator -1- .
Position air guide for middle radiator -1- .

Lock retaining lugs at the top -2- and bottom -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for middle radiator

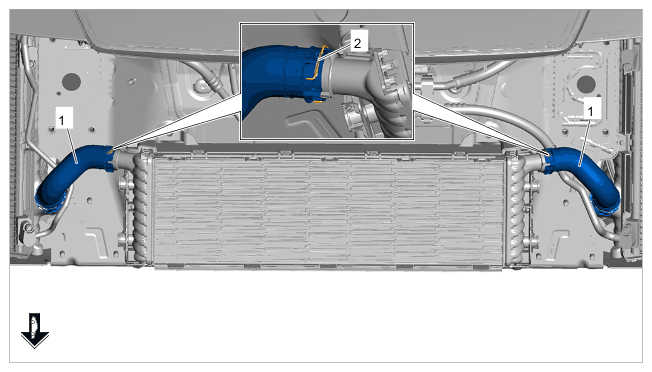

Fit coolant hoses -1- and secure with safety clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose on middle radiator
