Removing Coolant Temperature Sensor

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Hot fluid
  • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  1. Remove coolant temperature sensor -1-  .

    Release and disconnect cable plug -3-  .

    Unscrew screw -2-  .

    Pull off coolant temperature sensor -1-  and catch emerging coolant.

    Close off opening using a stopper.

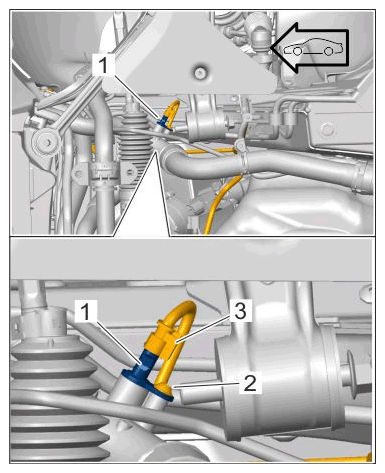

G15488786Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant temperature sensor
