Installing Coolant Temperature Sensor
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

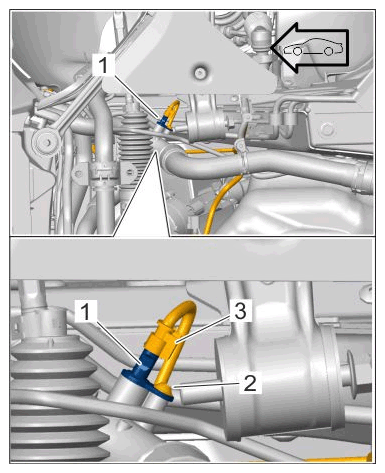

- Install coolant temperature sensor -1-
.
Replace O-ring.
Tighten screw -2-
.
Tightening torque: > Tightening torque 5 Nm (3.5 ftlb.) +/- 0.5 Nm (0.35 ftlb.)
Push on cable plug -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant temperature sensor
