Remove Temperature Sensor (Engine)

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

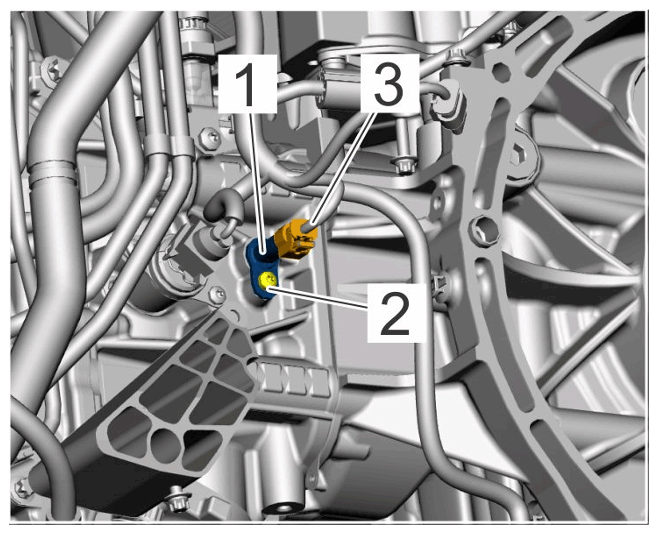

Remove coolant temperature sensor -1- .
Release and disconnect cable plug -3- .

Unscrew screw -2- .

Pull off coolant temperature sensor -1- and catch emerging coolant.

Close off opening using a stopper.

Replace O-ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine temperature sender
