Removing Directional-Control Valve For Thermal Management

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove heat protection on directional-control valve for thermal management -1- .
Detach holder -2- from heat protection -1- .

Unscrew and remove screws -3- .

Remove heat protection -1- and loosen electric line from holder -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

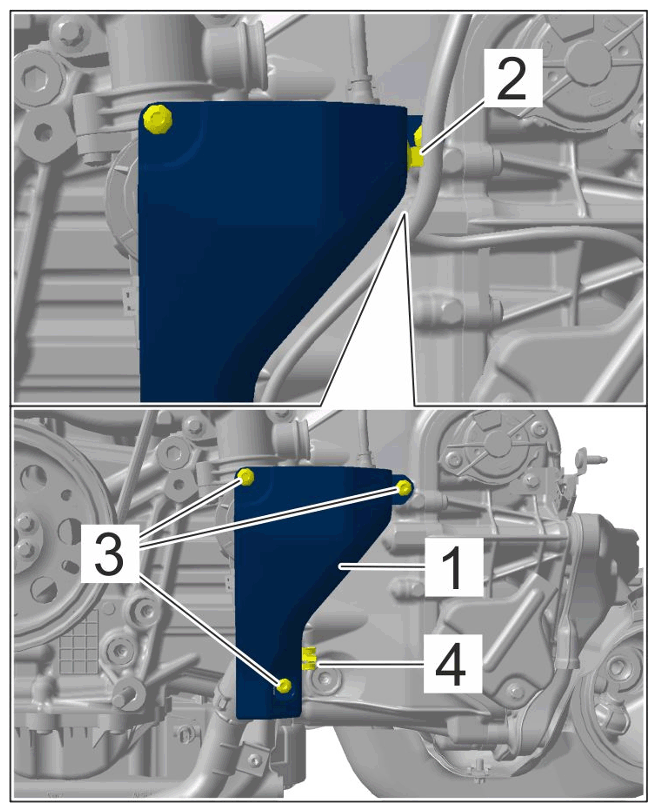

Heat protection on directional-control valve for thermal management
WARNING:
Hot fluid
- Danger of scalding
  → Let the fluid cool down.

  → Wear personal protective gear.
Remove directional-control valve -1- .
Release and disconnect vacuum line -2- .

Loosen spring band clamp -3- and pull off coolant hose.

Collect emerging coolant.

Unscrew and remove screws -4- .

Remove directional-control valve -1- and collect emerging coolant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

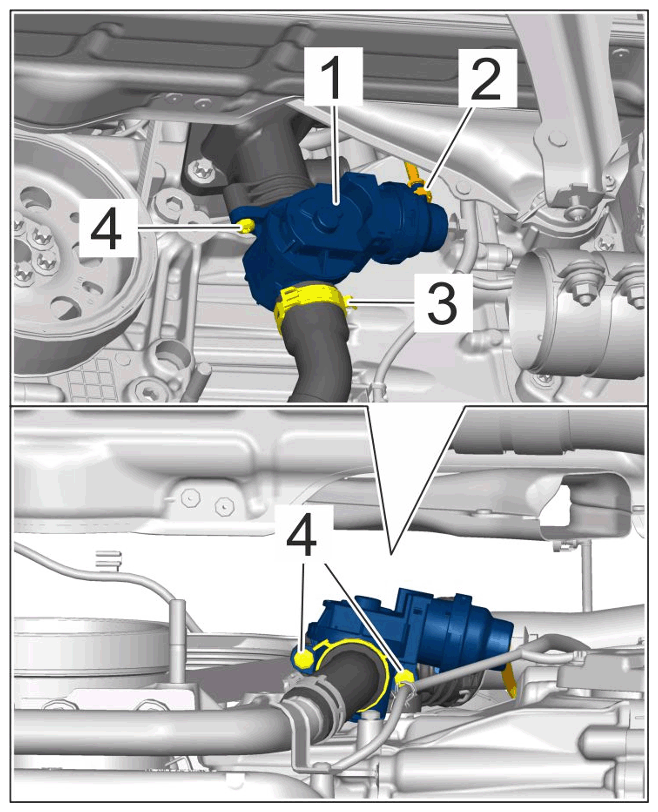

Directional-control valve for thermal management
