Removing Rear Left Coolant Pipe

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Hot fluid
  • Danger of scalding

    → Avoid contact with hot fluid.

    → Wear personal protective gear.

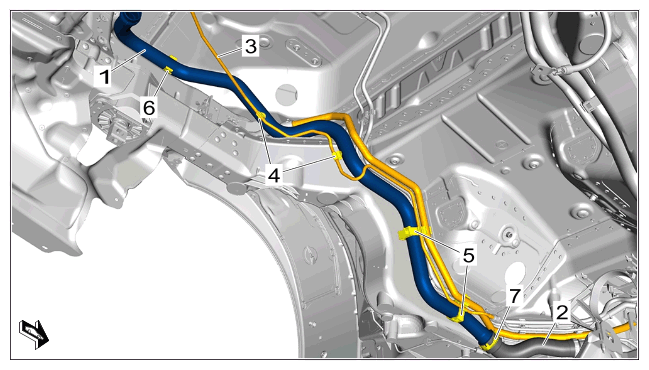

  1. Remove rear left coolant pipe -1-  .

    Unclip vent line -3-  from clips -4-  .

    Release holder -5-  and open it.

    Unclip coolant pipe at rear left from holders -5 and 6-  .

    Release retaining clip -7-  and detach rear left coolant pipe -1-  from coolant hose -2-  .

    Collect emerging coolant.

    G15488771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear left coolant pipe
