Installing Rear Right Coolant Pipe
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Install rear right coolant pipe -1-
.
Position rear right coolant pipe -1-
.
Push rear right coolant pipe -1-
onto coolant hose -2-
and lock retaining clip -4-
.
Clip coolant pipe at rear right into holder -3-
.
Close and lock holder -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

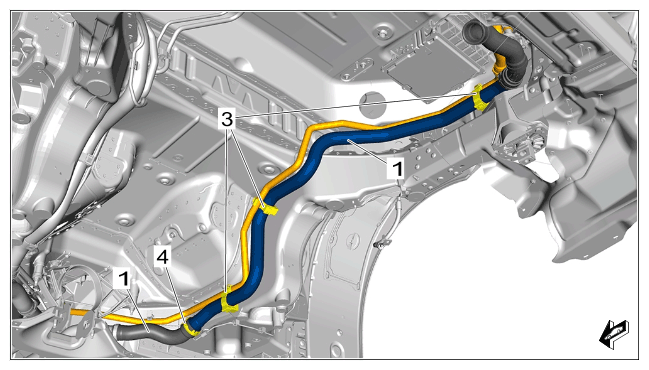

Rear right coolant pipe
