Installing Rear Left Coolant Pipe

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install rear left coolant pipe -1-  .

    Position rear left coolant pipe -1-  .

    Push rear left coolant pipe -1-  onto coolant hose -2-  and lock retaining clip -7-  .

    Clip coolant pipe at rear left -1-  into holders -5 and 6-  .

    Close and lock holder -5-  .

    Insert vent line into clips -4-  .

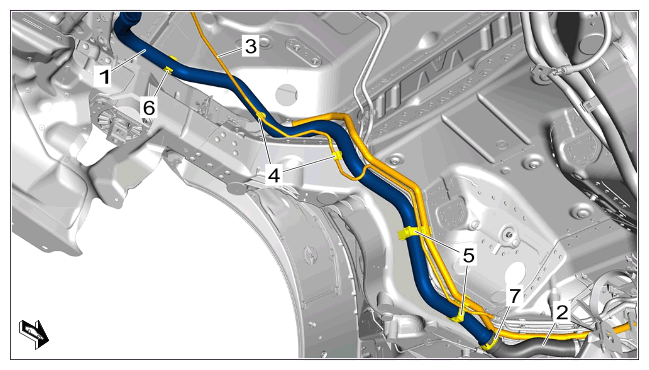

    G15488773Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear left coolant pipe
