Removing Front Coolant Pipe At The Centre
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Caustic fluids
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
Information
Despite the fact that the coolant has been drained, residual amounts of coolant can still emerge at the joints during removal. Have sufficient collecting containers and cloths to hand.

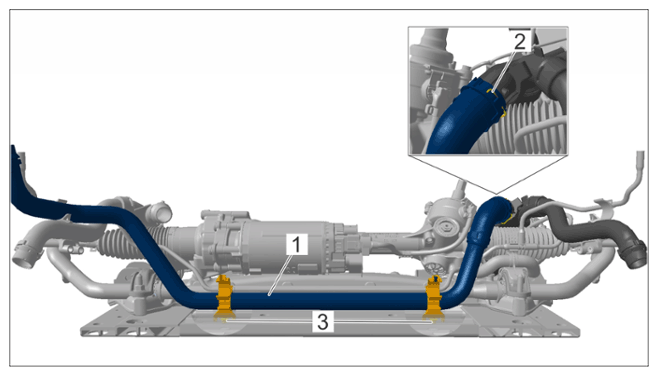

- Front-axle carrier with coolant pipes removed.
- Remove coolant pipe -1-
.
Loosen safety clip -2- and disconnect coolant hose.
Loosen coolant pipe -1- from the holders -3- .

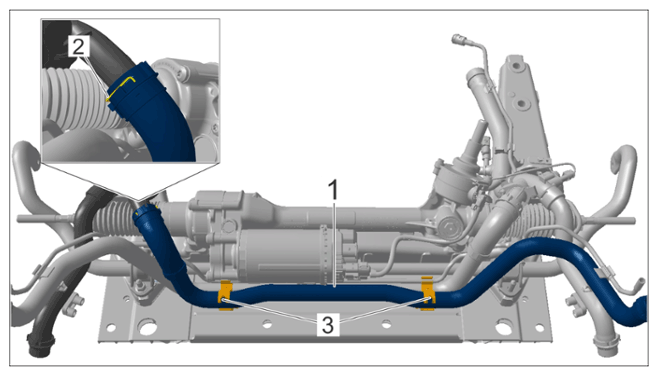

Front coolant pipe, center
- Remove coolant pipe -1-
.
Loosen safety clip -2- and disconnect coolant hose.
Unscrew screws -3- from below.
Remove coolant pipe -1- .
Front coolant pipe
