Removing Front Coolant Pipe: Notes
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
- Danger of chemical burns
→ Wear personal protective gear.
→ Ensure that there is good ventilation.
→ Avoid contact with caustic fluid.
→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.
Information
Despite the fact that the coolant has been drained, residual amounts of coolant can still emerge at the joints during removal. Have sufficient collecting containers and cloths to hand.

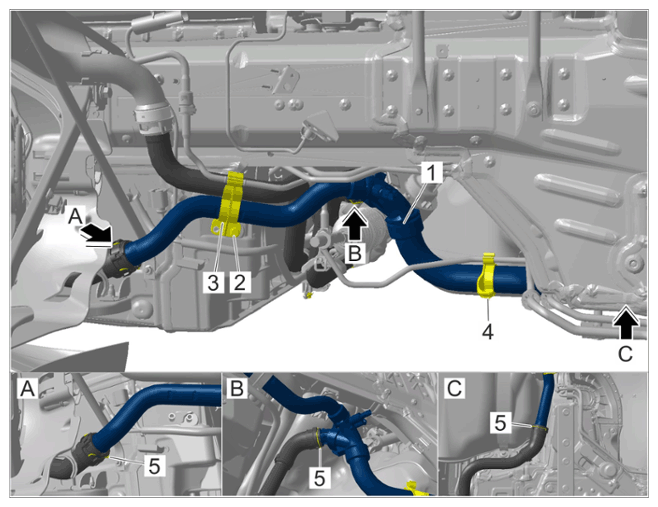

- Remove front coolant pipe -1- at the left.
Release and disconnect electric plug connection for coolant temperature sensor.
Unscrew screw -2- and loosen holder -3- .
Loosen holder -4- .
Loosen safety clips -5- and disconnect coolant hoses.
Collect emerging coolant.
Remove front coolant pipe -1- .
Coolant pipes, front left
