Installation Position

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

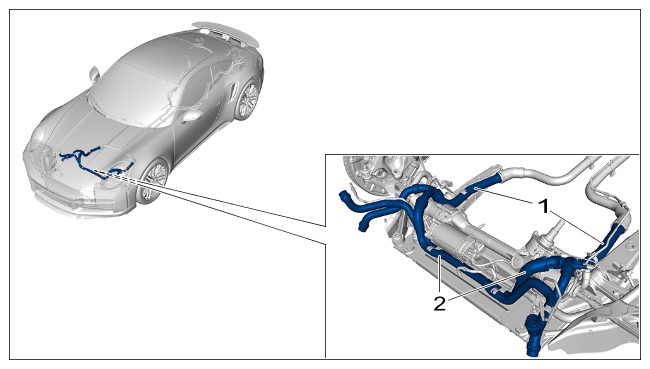

Fig 1: Front Coolant Pipe Components Location
G15488746Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Front coolant pipes
2  Front coolant pipes, center
