Removing Coolant Pipe (Bracket For Coolant Pump)
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

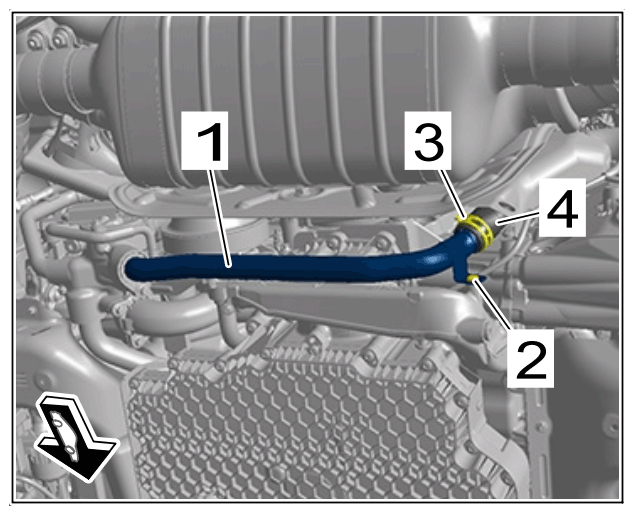

- Remove coolant pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant pipe
Unscrew screw -2-
.
Loosen spring band clamp -3-
using > VAS 6890 - spring band clamps pliers
.
Pull off coolant hose -4-
.
Disconnect coolant pipe -1-
from coolant regulator housing.
Catch emerging coolant.
Close off line connections using suitable stoppers.
