Installing Coolant Pipe (Bracket For Coolant Pump)
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

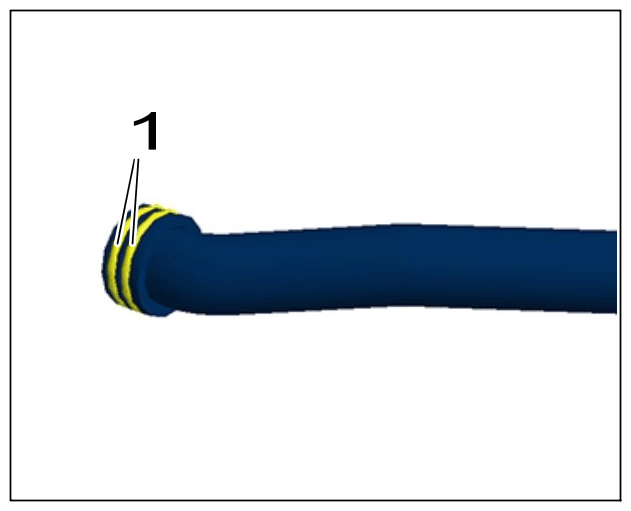

- Replace O-rings -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
O-rings

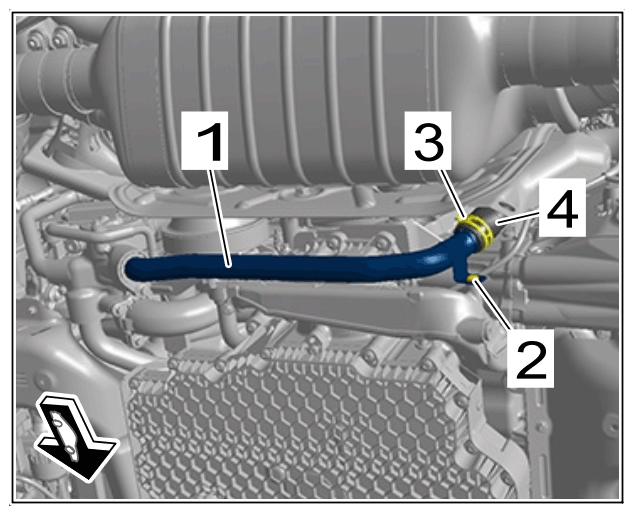

- Install coolant pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Coolant pipe
Position coolant pipe -1-
with new
O-rings.
Push on coolant hose -4-
and tighten spring band clamp -3-
using > VAS 6890 - spring band clamp pliers
.
Screw in and tighten screw -2-
.
> Tightening torque 10 Nm (7.5 ftlb.)
