Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic values | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Retaining bracket to body | M8 x 25 | Tightening torque | 20 Nm (15 ftlb.) | ||
| Bracket for rear all-wheel final drive to body | M10 x 35 | Initial tightening | 40 Nm (30 ftlb.) | ||
| Bracket for rear all-wheel final drive to body | M10 x 35 | Torque angle | 45° | ||
| Bracket for rear all-wheel final drive to bearing | Nut with screw, M10 x 90 | Tightening torque | 65 Nm (48 ftlb.) | +/- 4 Nm (3 ftlb.) | |
| Rear tunnel reinforcement to floorpan | Item 2 | Tightening torque | 40 Nm (30 ftlb.) | ||
|

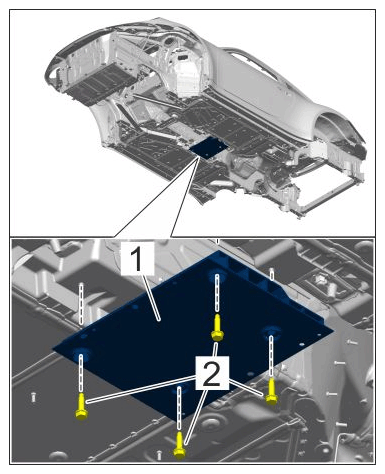

Crash reinforcement in rear tunnel |
|||||
