Removing Centre Coolant Pipe

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Only for all-wheel drive vehicles:

   Support the front axle final drive with an > VAS 6931 - engine and gearbox jack  .

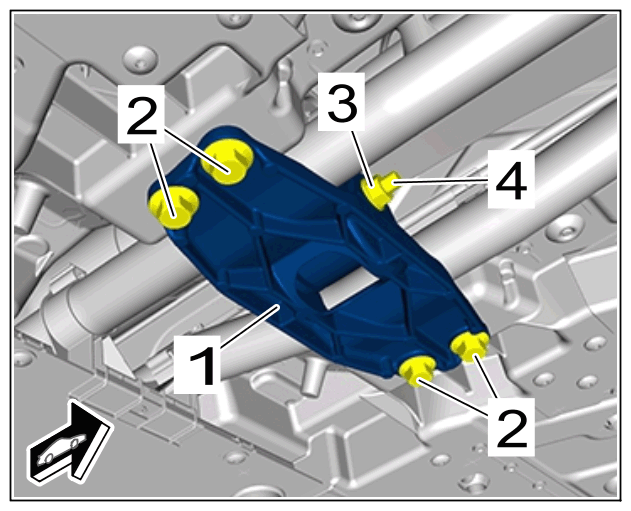

2. Only for all-wheel drive vehicles:

   Remove the mounting plate for -1-  rear cardan shaft mounting.

   Unscrew and remove screws -2-  .

   Unscrew nut -3-  and counter at screw -4-  at the same time.

   Remove the mounting plate for rear cardan shaft mounting -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting plate for rear cardan shaft mounting

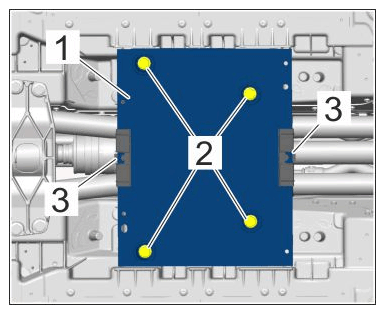

3. Remove the -1-  tunnel reinforcement.

   Unscrew and remove screws -2-  .

   Unclip the holder for -3-  coolant pipes and remove the tunnel -1-  reinforcement.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tunnel reinforcement

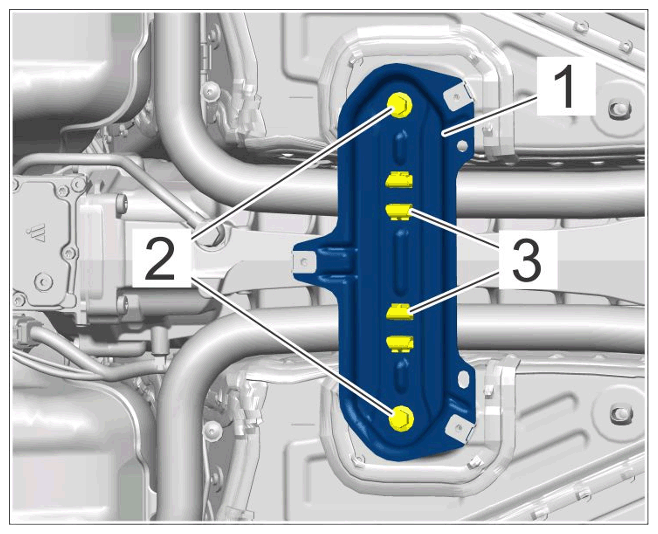

4. Remove the strut for the -1-  front coolant pipe holder.

   Unscrew and remove screws -2-  .

   Unclip the clips -3-  and remove the -1-  front coolant pipe holder strut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Strut for front coolant pipe holder.

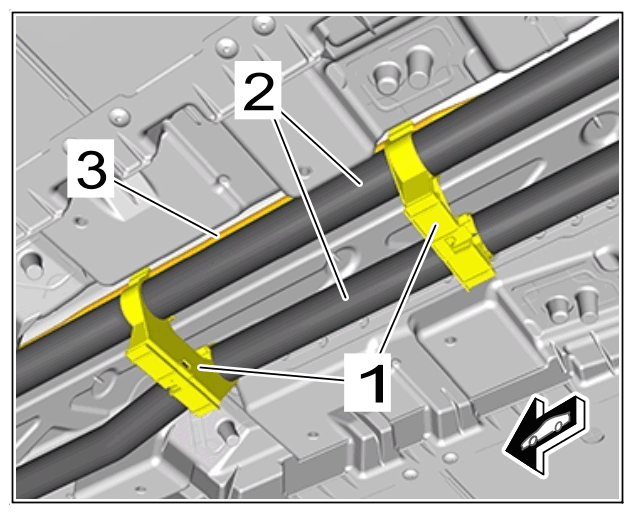

5. Remove holder for the coolant pipes -1-  .

   Release and open holder -1-  for coolant pipes.

   Unclip the vent line -3-  and center coolant pipes -2-  .

   Remove holder for coolant pipes -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre holder for coolant pipes

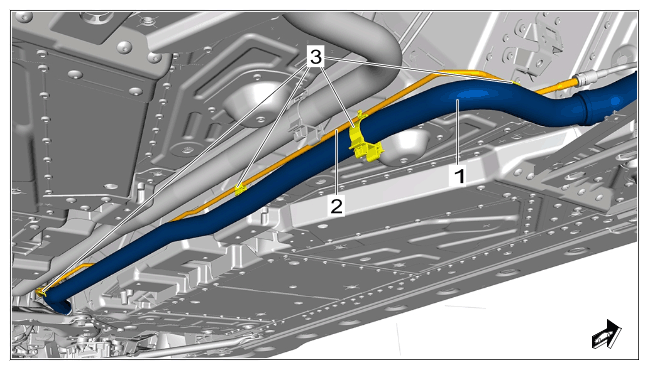

6. Centre coolant pipe, left only:

   Disconnect the vent line -2-  from the center coolant pipe -1-  .

   Unclip vent line -2-  from clips -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vent line

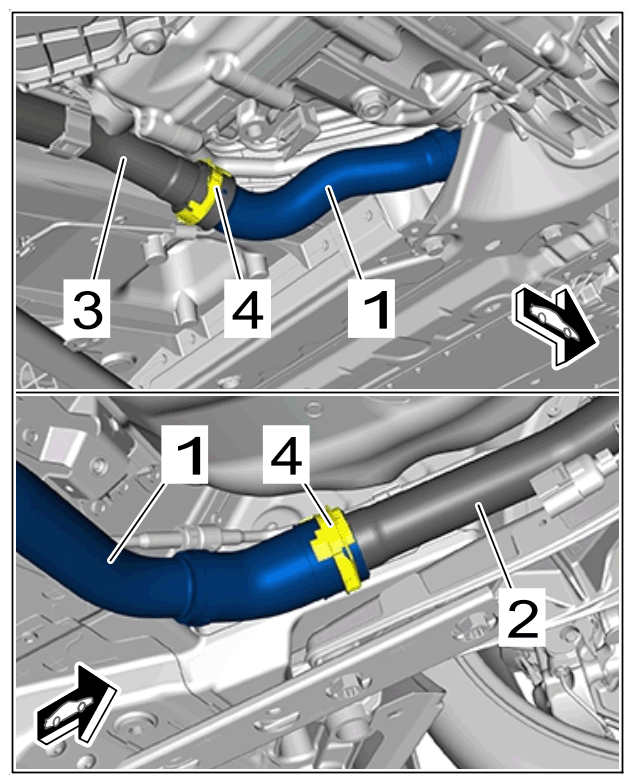

7. Removing the -1-  center coolant pipe.

   Unlock spring clamps -4-  and detach the center coolant pipe -1-  from the front -2-  and rear coolant pipe -3-  .

   Collect emerging coolant.

   Remove the center coolant pipe -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre coolant pipe
