Removing Coolant Distributor Housing

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

Despite the fact that the coolant has been drained, residual amounts of coolant can still emerge at the joints during removal. Have sufficient collecting containers and cloths to hand.

Information

To remove the distributor housing, the unit carriers do not have to be removed - they just need to be loosened and lifted up off the distributor housing.

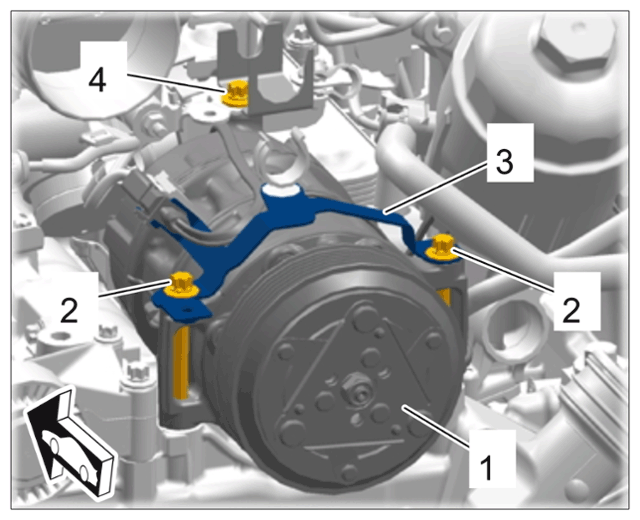

Loosen air-conditioning compressor -1- .
Unscrew and remove screws -2 and 4- .

Lift the air-conditioning compressor -1- slightly off the distributor housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning compressor

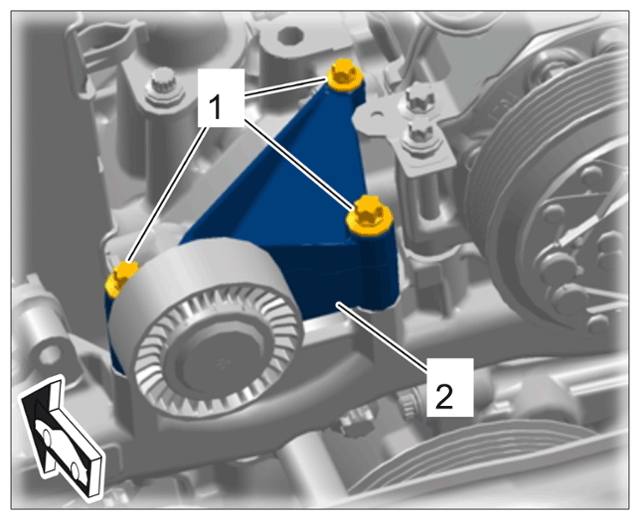

Vehicles without Porsche Dynamic Chassis Control (PDCC): Remove bracket for deflection roller -2- .
Unscrew and remove screws -1- .

Remove bracket for deflection roller -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for deflection roller
Vehicles with Porsche Dynamic Chassis Control (PDCC): Remove pulley for pump (PDCC) and loosen pump (PDCC).
Refer to the appropriate service information.
Remove angled pipe -2- .
Unscrew and remove screws -1- .

Remove angled pipe -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Angled pipe
Remove coolant distributor housing.
Information

If the fastening screws cannot be removed easily, loosen the fastening screws as much as possible and remove them together with the distributor housing during removal.

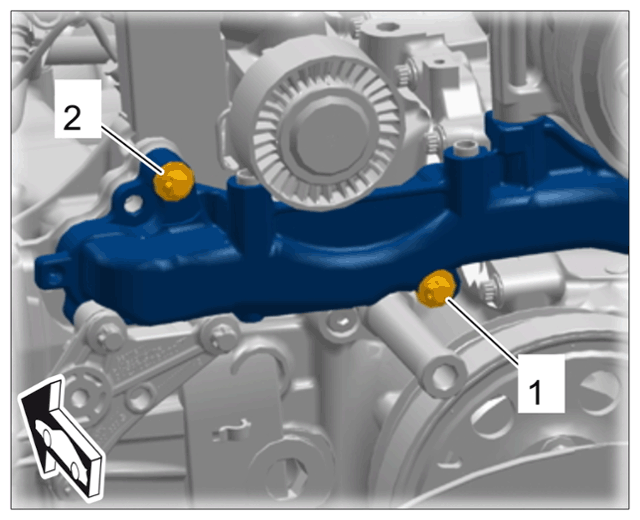

Unscrew and remove screw -1- .

Unscrew and remove screw -2- .

Collect emerging coolant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for coolant distributor housing

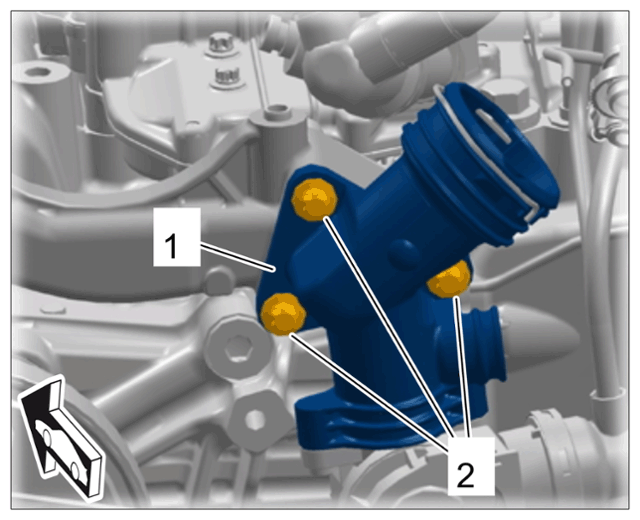

Loosen coolant connection piece -1- .
Unscrew and remove screws -2- .

Lift coolant connection piece -1- and remove distributor housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant connection piece on distributor housing
